SECTION 501-02: Front End Body Panels
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Cowl Vent Screen

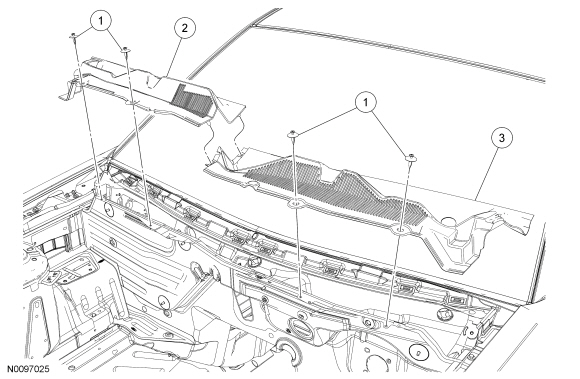

Item Part Number Description
1 N804837 Cowl vent screen pin-type retainers (4 required)
2 63018A14 RH cowl vent screen
3 63018A15 LH cowl vent screen
  1. Remove the 2 wiper pivot arms. For additional information, refer to Section 501-16 .
  1. Remove the 4 cowl vent screen pin-type retainers.

  1. NOTE: The RH cowl vent screen overlaps the LH cowl vent screen and must be removed first.

    Remove the RH and LH cowl vent screens.
  1. To install, reverse the removal procedure.
