SECTION 501-02: Front End Body Panels
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Fender Splash Shield

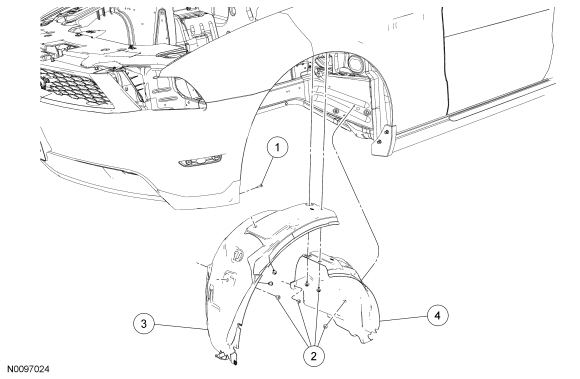

Item Part Number Description
1 W706805 Fender splash shield screw
2 N807389 Fender splash shield pin-type retainers (7 required)
3 16102-A RH/ 16103-A LH Fender splash shield (front)
4 16102-B RH/ 16102-B LH Fender splash shield (rear)

Removal and Installation

  1. Remove the front fender splash shield screw.
  1. Remove the 7 fender splash shield pin-type retainers.
  1. Remove the front and rear fender splash shields.
  1. To install, reverse the removal procedure.
