SECTION 501-03: Body Closures
2014 Mustang Workshop Manual
GENERAL PROCEDURES
Procedure revision date: 01/07/2013

Door Alignment

All adjustments

  1. Remove the door latch striker.

Horizontal and vertical adjustment

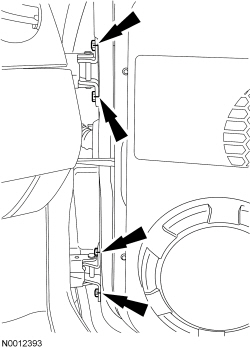

  1. Loosen the front door hinge-to-front door bolts.
  1. Adjust the front door. For additional information, refer to Section 501-35 .
  1. Tighten the front door hinge-to-front door bolts to 30 Nm (22 lb-ft).

Fore and aft adjustment

  1. Loosen the door hinge-to-body bolts.
  1. Adjust the front door. For additional information, refer to Section 501-35 .
  1. Tighten the front door hinge-to-body bolts to 33 Nm (24 lb-ft).

All adjustments

  1. Install the front door latch striker.
