SECTION 501-03: Body Closures
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Door Check Arm

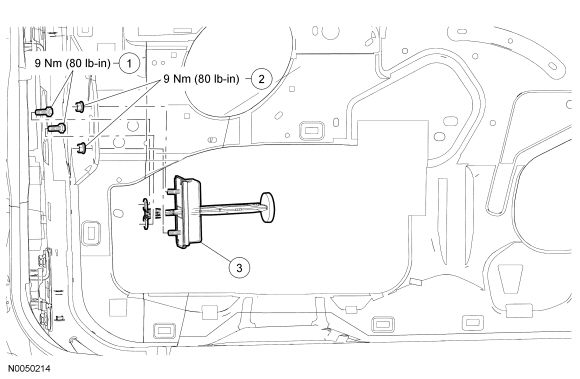

Item Part Number Description
1 56912 Door check arm bolts (2 required)
2 W705436 Door check arm nuts (2 required)
3 23500 Door check arm

Removal and Installation

  1. Remove the front door trim panel. For additional information, refer to Section 501-05 .
  1. Remove the door check arm bolts.
  1. Remove the nuts and the door check arm.
  1. To install, reverse the removal procedure.
