SECTION 501-05: Interior Trim and Ornamentation
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

A-Pillar Trim Panel

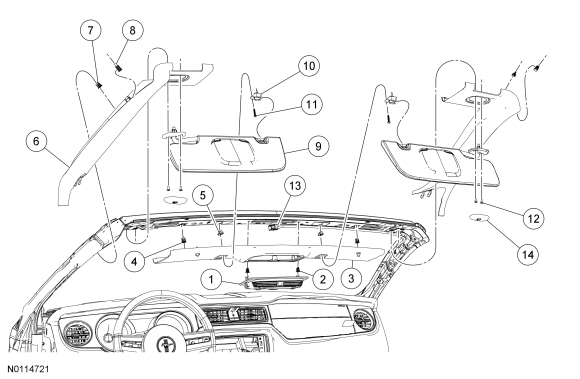

NOTE: Convertible shown, coupe similar.


Item Part Number Description
1 6351A58 Overhead console
2 W704021 Overhead console retainer (2 required)
3 760387 Header trim panel
4 W704021 Header trim panel retainer (2 required)
5 1704100 Sun visor clip insert (2 required)
6 7603599 LH/ 7603598 RH A-pillar trim panel
7 W704021 A-pillar trim panel retaining clip
8 7603598 A-pillar trim panel pushpin
9 6304105 LH/ 6304104 RH Sun visor
10 6304132 Sun visor clip
11 — Sun visor clip screw (2 required) (part of 6304132)
12 — Sun visor screw (4 required) ( part of 6304105 LH/6304104 RH)
13 14334 Overhead console wiring harness
14 76046B96 Sun visor bracket cover (2 required)

Removal and Installation

  1. Remove the sun visor bracket cover.
  1. Remove the 2 sun visor screws and set the sun visor aside.
  1. Pull outward on the A-pillar trim to release the retaining clip and the pushpin from the body.
  1. Pull slightly down and straight back on the A-pillar to unhook the front lower portions of the A-pillar trim panel.

  1. NOTE: To avoid any damage to the A-pillar trim panel, remove any clips from the body and attach them to the A-pillar trim panel.

    To install, reverse the removal procedure.
