SECTION 501-05: Interior Trim and Ornamentation
| 2014 Mustang Workshop Manual
|
REMOVAL AND INSTALLATION
| Procedure revision date: 01/07/2013
|

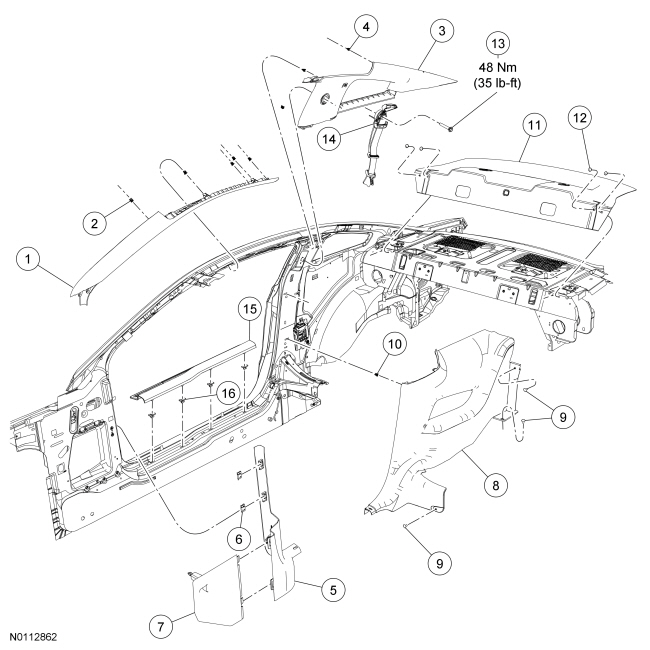

NOTE: Coupe shown, convertible similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6303599 LH/ 6303598 RH | A-pillar trim panel |
| 2 | W704021 | A-pillar trim panel retaining clip (5 required) |
| 3 | 6352019 LH/ 6352018 RH | Quarter window trim panel |
| 4 | W704021 | Quarter window trim panel retaining clip (3 required) |
| 5 | 6302345 LH/ 6302344 RH | A-pillar lower trim panel |
| 6 | 17378 | A-pillar lower trim panel retaining clip (2 required) |
| 7 | 63023A98 | A-pillar lower trim panel fuse door |
| 8 | 6331013 LH/ 6331012 RH | Quarter trim panel |
| 9 | W709002 | Quarter trim panel pin-type retaining clips (3 required) |
| 10 | 17035 | Quarter trim panel retaining clip (4 required) |
| 11 | 6346668 | Parcel shelf |
| 12 | 54310D12 | Parcel shelf pin-type retaining clip (4 required) |
| 13 | 2424886 | Upper front safety belt anchor bolt |
| 14 | 63611B08 | Front safety belt assembly |
| 15 | 6313209 LH/ 6313208 RH | Scuff plate trim panel |
| 16 | — | Scuff plate trim panel retaining clip (part of 6313209 LH/ 6313208 RH) (4 required) |
