SECTION 501-05: Interior Trim and Ornamentation
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Scuff Plate Trim Panel

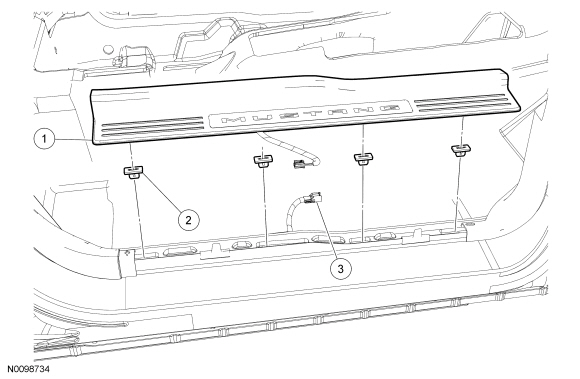

Item Part Number Description
1 6313209 LH/ 6313209 RH Scuff plate trim panel
2 — Scuff plate trim panel retaining clips (4 required) (part of 6313209 LH/ 6313209 RH)
3 14A005 Scuff plate trim panel electrical connector

  1. NOTICE: To avoid damage to the scuff plate trim panel, remove any retaining clips from the body and attach them to the scuff plate trim panel before installing.

    Remove the front door scuff plate trim panel by lifting straight up on the front and rear edge of the scuff plate trim panel to release the 4 lower retaining clips.
  1. Disconnect the door scuff plate trim panel electrical connector.
  1. Remove the door scuff plate trim panel.
  1. To install, reverse the removal procedure.
