SECTION 501-08: Exterior Trim and Ornamentation
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Radiator Grille

Removal

All vehicles

NOTE: Base vehicle grille shown, all others similar.

  1. Remove the front bumper cover. Refer to Section 501-19 .

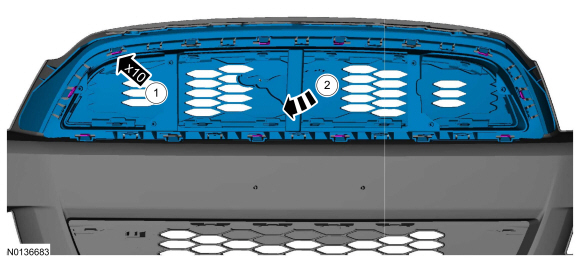

Upper radiator grille

  1. Remove the grille and reinforcement.

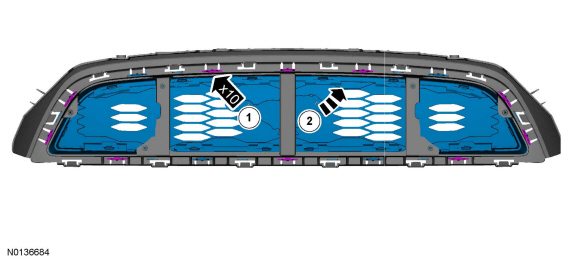

  1. Separate the grille and reinforcement.

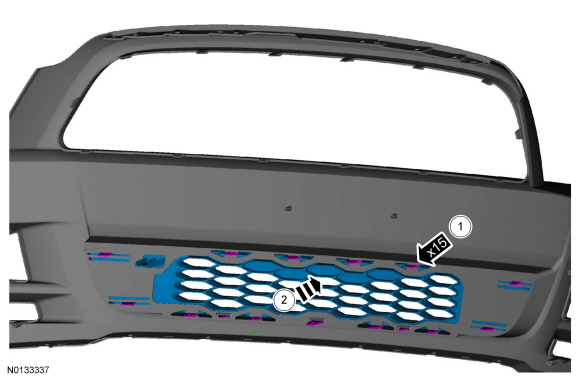

Lower radiator grille

Installation

  1. To install, reverse the removal procedure.
