SECTION 501-08: Exterior Trim and Ornamentation
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Rocker Panel Moulding

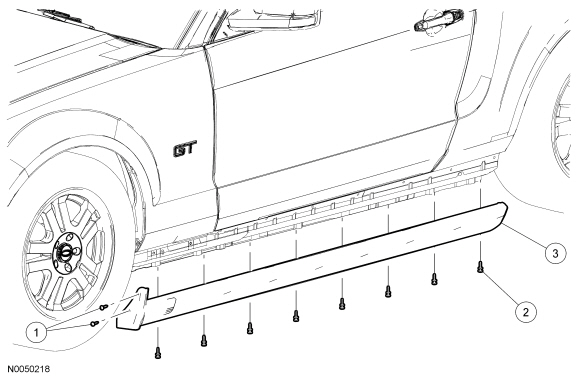

Item Part Number Description
1 W709176-S Front rocker panel-to-fender pin-type retainers (2 required each side)
2 W709889-S Rocker panel moulding pin-type retainer (8 required each side)
3 6310154 RH/ 6310155 LH Rocker panel moulding

Removal and Installation

  1. Remove the 2 front rocker panel moulding-to-fender pin-type retainers.
  1. Remove and discard the 8 rocker panel pin-type retainers.
  1. Using a suitable tool, release the 8 hidden pin-type retainers and remove the rocker panel moulding.
  1. To install, reverse the removal procedure.
