SECTION 501-08: Exterior Trim and Ornamentation
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Spoiler — Rear

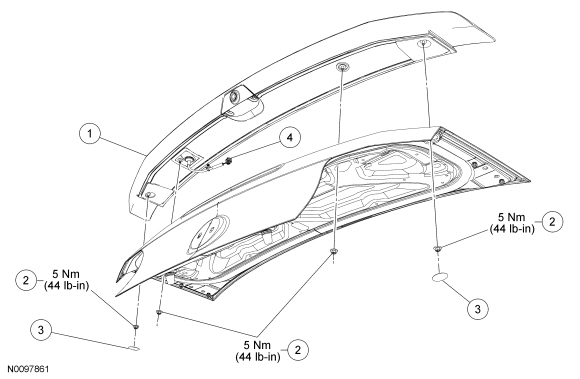

NOTE: Rear view camera shown, all others similar.


Item Part Number Description
1 41602 Rear spoiler
2 W702147 Rear spoiler nuts (4 required)
3 W709073 Rear spoiler plugs (2 required)
4 — Rear view camera electrical connector (part of 19G490)

Removal

  1. Remove the spoiler plugs.
  1. Remove the 4 rear spoiler nuts.

  1. NOTE: The rear spoiler is held on by double-sided tape.

    Using a non-metal fishing line or equivalent, cut the double-sided tape.

Installation

  1. Clean the rear spoiler mounting surfaces.
  1. Apply double-sided tape to the rear spoiler as shown.
  1. Install the rear spoiler.
  1. Install the 4 rear spoiler nuts.
  1. Install the 2 rear spoiler plugs.
