SECTION 501-09: Rear View Mirrors
| 2014 Mustang Workshop Manual
|
REMOVAL AND INSTALLATION
| Procedure revision date: 01/07/2013
|

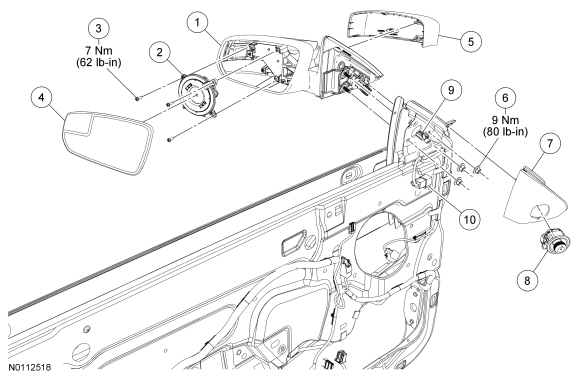

NOTE: LH shown, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 17682 RH/ 17683 LH | Exterior mirror |
| 2 | 17D696 | Exterior mirror motor |
| 3 | — | Exterior mirror motor screw (3 required) (part of 17D696) |
| 4 | 17K707 | Exterior mirror glass |
| 5 | 17K709 | Exterior mirror cover |
| 6 | N621907 | Exterior mirror mounting nut (3 required) |
| 7 | 17K709 | Sail trim panel |
| 8 | 17B676 | Exterior mirror control switch |
| 9 | — | Exterior mirror motor connector (part of 14631) |
| 10 | — | Exterior mirror control switch connector (part of 14631) |
