Interior Rear View Mirror

Special Tool(s)

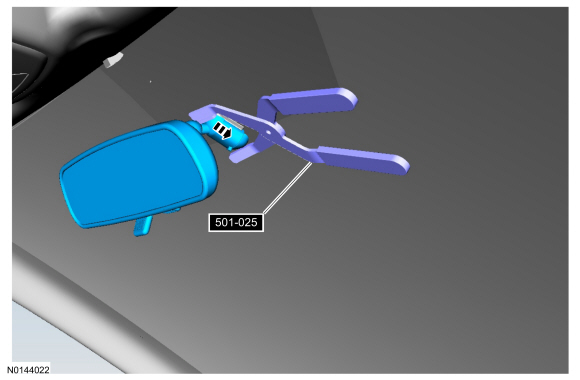

	Installer, Rear View Mirror 501-025 (T94P-17700-AH)
	Mirror Remover 501-D118A

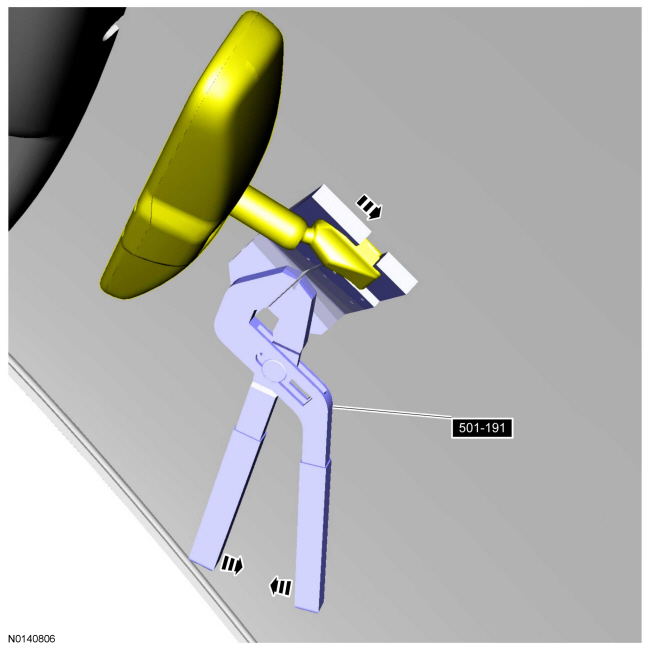

	Installer, Rear View Mirror 501-191

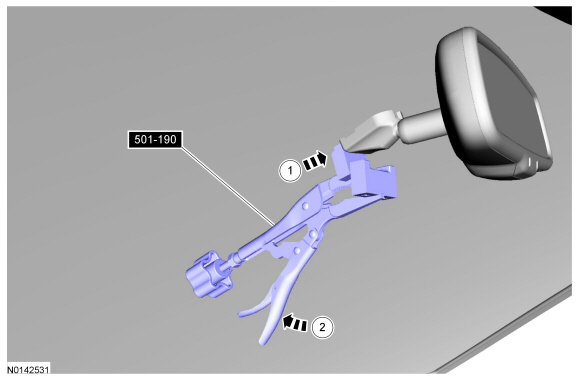

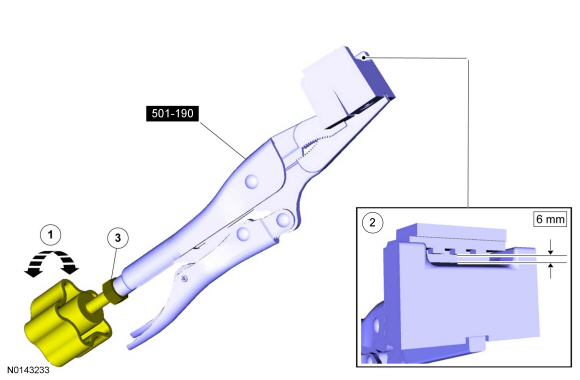

	Mirror Remover 501-190

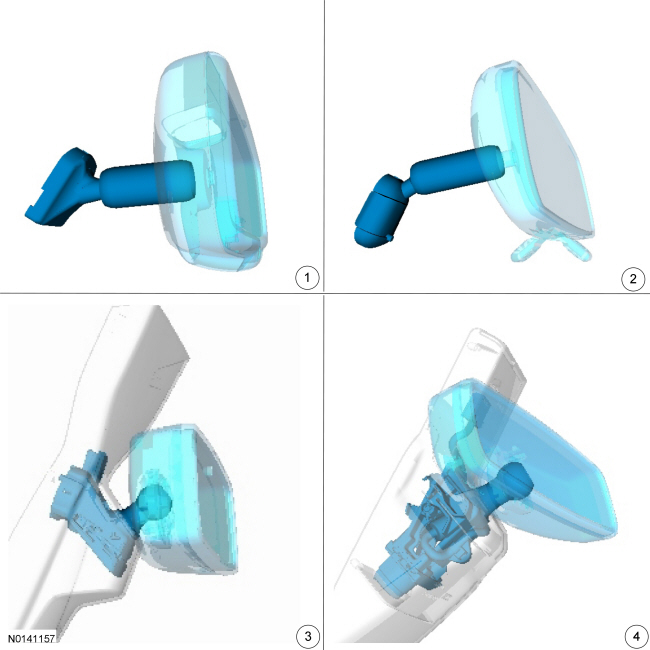

Mirror Identification

Removal

Mirror Type 1

NOTICE: The windshield must be at room temperature. Otherwise, damage to the windshield glass may occur.

NOTE:  Click here to view a video version of this procedure.

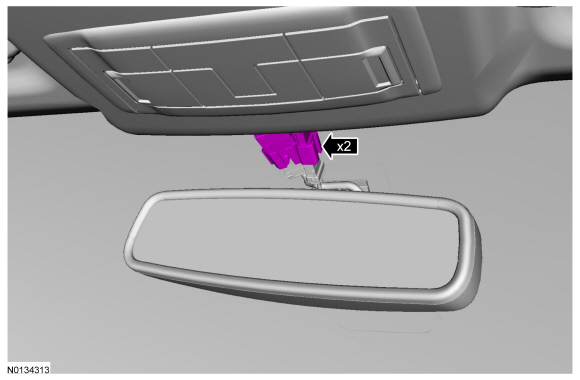

1. If equipped.

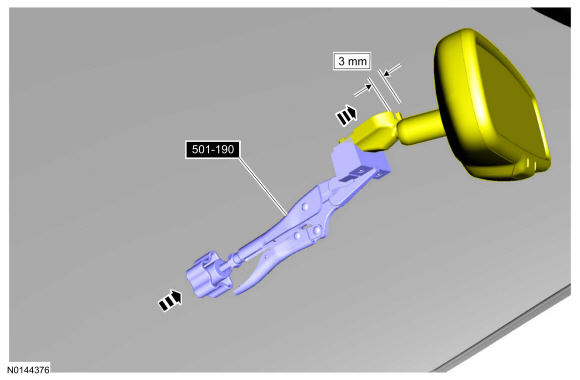

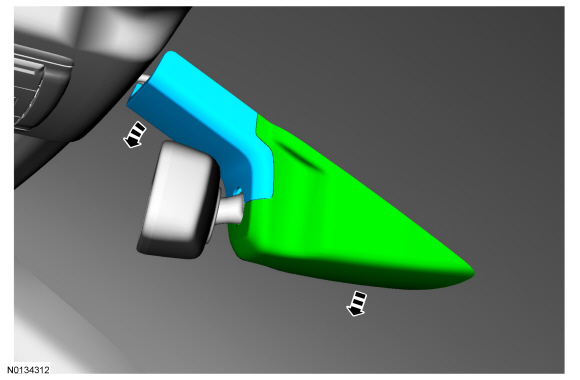

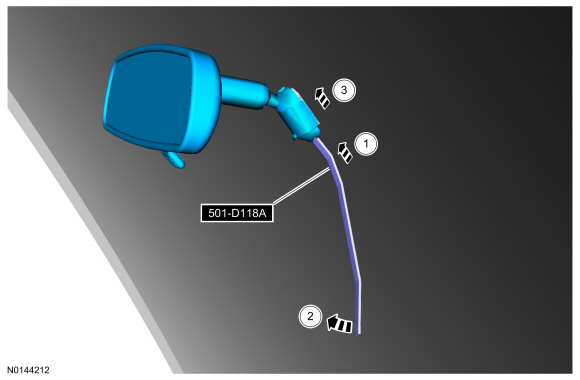

3. NOTICE: Make sure the Mirror Remover is fully inserted into the interior rear view mirror mount access hole. Otherwise, damage to the windshield glass may occur.

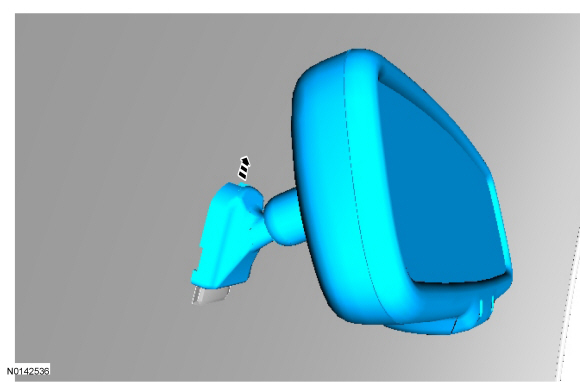

4. Using a closed hand, bump the adjustment handle of the Mirror Remover to slide the mirror upward on the mirror mount.

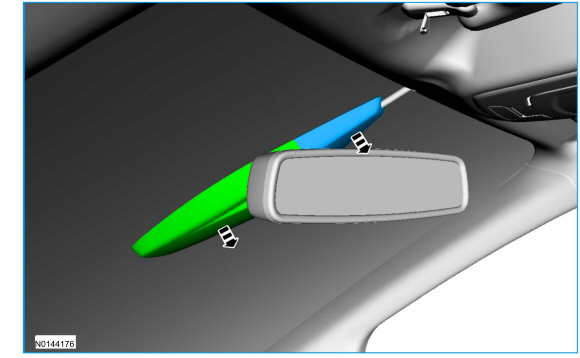

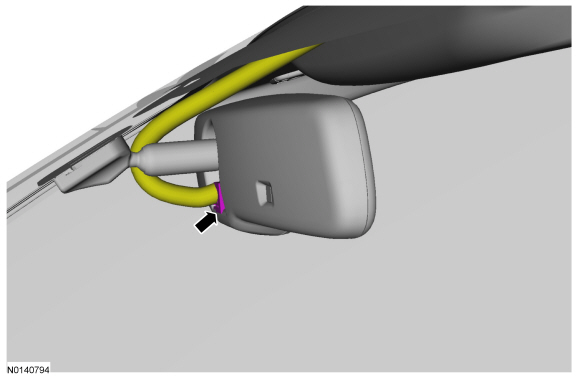

Mirror Type 2

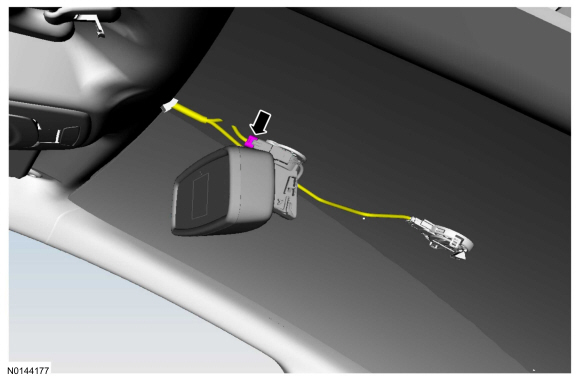

Mirror Type 3

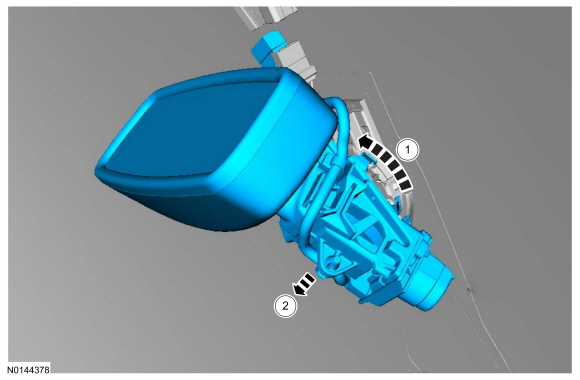

Mirror Type 4

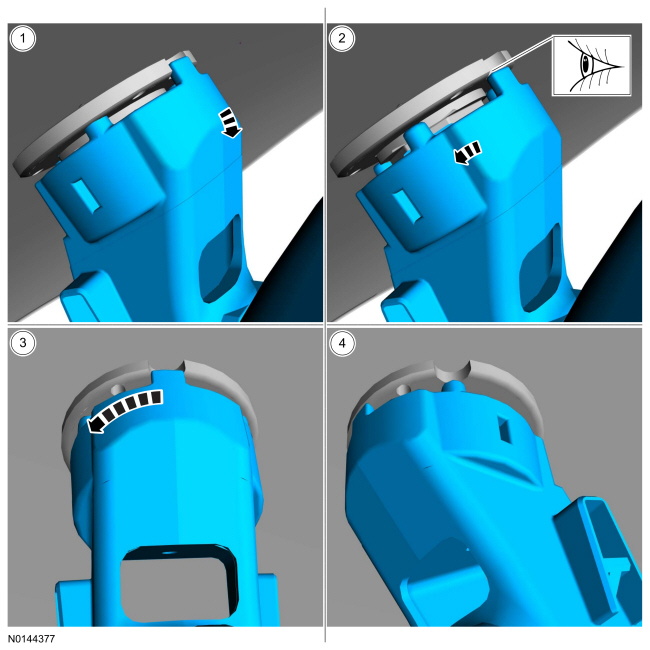

12. NOTICE: To prevent damage to the mirror or base, rotate the mirror base with hands only do not use tools.

    NOTICE: To prevent damage to the mirror wiring, do not rotate the mirror head beyond 180 degrees.

Installation

Mirror Type 1

NOTE:  Click here to view a video version of this procedure.

1. Slide the interior rear view mirror mount over the windshield bracket from the top.

2. NOTE: An audible click will be heard as the mirror fully seats.

3. If equipped.

4. If equipped, check the compass zone and calibration. Refer to Section 413-01 .

Mirror Type 2

6. If equipped with a compass module which requires calibration, check the compass zone adjustment and calibration. Refer to General Procedures in Section 413-01.

Mirror Type 3

7. To install, reverse the removal procedure.

Mirror Type 4

8. To install, reverse the removal procedure.
   • If a new mirror has been installed, download the IPM-A configuration information from the scan tool to the new IPM-A .
   • If the vehicle is equipped with lane departure and a new mirror has been installed, perform camera alignment using a scan tool.
