SECTION 501-10: Seating
| 2014 Mustang Workshop Manual
|
REMOVAL AND INSTALLATION
| Procedure revision date: 01/07/2013
|

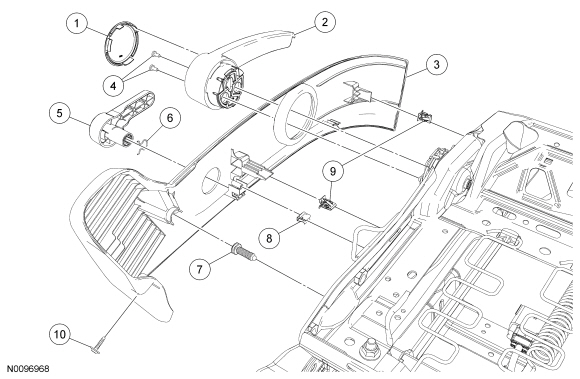

NOTE: LH shown, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 62768 | Manual height adjust handle cover |
| 2 | 61753 | Manual height adjust handle |
| 3 | 62187 | Side shield |
| 4 | W711217 | Manual height adjust handle screws (2 required) |
| 5 | 62622 | Recline handle |
| 6 | — | Recline handle retainer (part of 62622) |
| 7 | — | Side shield pin-type retainer (part of 62187) |
| 8 | — | Side shield retainer, Z-clip (part of 62187) |
| 9 | — | Side shield retainers (2 required) (part of 62187) |
| 10 | W711216 | Side shield screw |

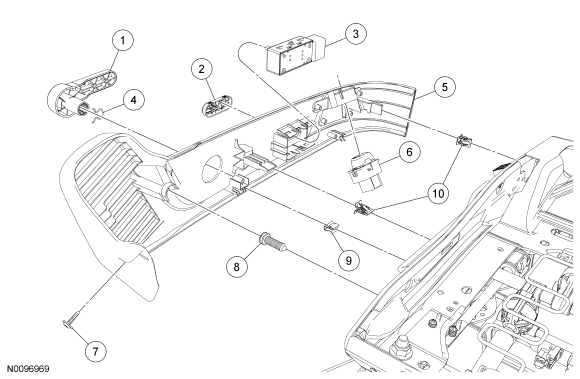

NOTE: LH shown, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 62622 | Recline handle |
| 2 | 14711 | Seat control switch knob |
| 3 | 14A701 | Seat control switch |
| 4 | — | Recline handle retainer (part of 62622) |
| 5 | 62187 | Side shield |
| 6 | 14A701 | Lumbar control switch |
| 7 | W711216 | Side shield screw |
| 8 | — | Side shield pin-type retainer (part of 62187) |
| 9 | — | Side shield retainer, Z-clip (part of 62187) |
| 10 | — | Side shield retainers (2 required) (part of 62187) |

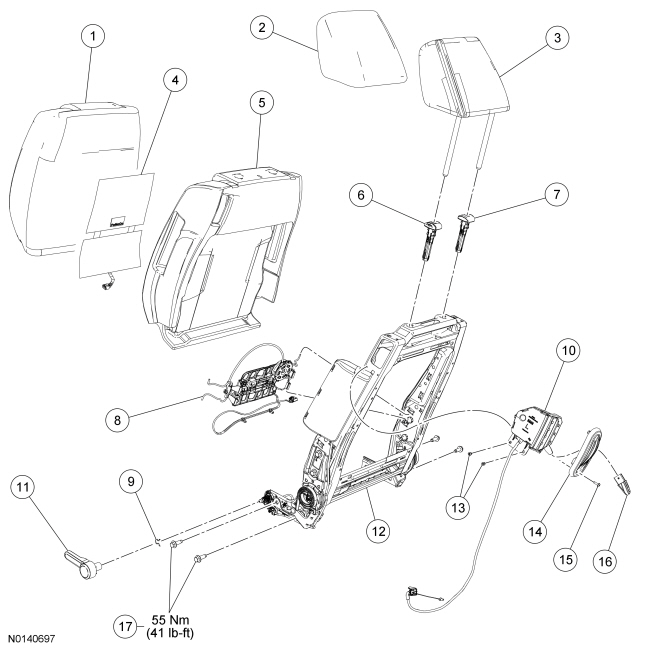

NOTE: Low back seat shown, high back seat similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 64416 RH/ 64417 LH | Backrest cover |
| 2 | — | Head restraint cover (low back seat only) |
| 3 | 611A08 | Head restraint (low back seat only) |
| 4 | 64810 RH/ 64811 LH | Backrest foam pad |
| 5 | 610A18 | Head restraint guide sleeve, RH (low back seat only) |
| 6 | 610A16 | Head restraint guide sleeve, LH (low back seat only) |
| 7 | 61019 RH/ 61019 LH | Backrest frame |
| 8 | W500633 | Backrest mounting bolts |
| 9 | 63226 | Lumbar support |
| 10 | 62432 | Backrest latch release |
| 11 | 62622 | Recline handle |
| 12 | — | Recline handle retainer (part of 62622) |
| 13 | W711024 | Backrest latch release rivets (2 required) |
| 14 | 62672 | Backrest latch release bezel |
| 15 | W506943 | Backrest latch release bezel screw |
| 16 | 62762 | Backrest latch release handle |

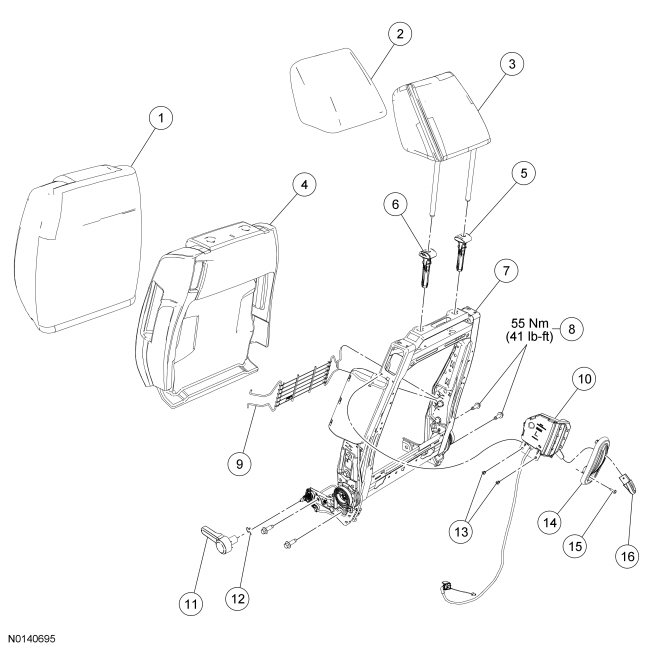

NOTE: LH shown, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 64417 | Backrest cover |
| 2 | — | Head restraint cover |
| 3 | 611A08 | Head restraint |
| 4 | 14D696 | Backrest heater mat (if equipped) |
| 5 | 64811 | Backrest foam pad |
| 6 | 610A16 | Head restraint guide sleeve, LH |
| 7 | 610A18 | Head restraint guide sleeve, RH |
| 8 | 65500 | Power lumbar assembly (if equipped) |
| 9 | — | Recline handle retainer (part of 62622) |
| 10 | 62432 | Backrest latch release |
| 11 | 62622 | Recline handle |
| 12 | 61019 | Backrest frame |
| 13 | W711024 | Backrest latch release rivets (2 required) |
| 14 | 62672 | Backrest latch release bezel |
| 15 | W506943 | Backrest latch release bezel screw |
| 16 | 62762 | Backrest latch release handle |
| 17 | W500633 | Backrest mounting bolts |

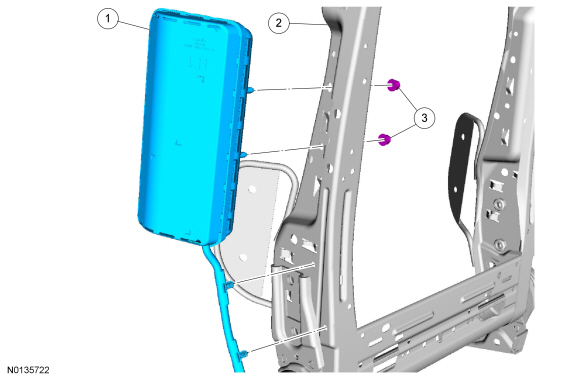

NOTE: LH shown, RH similar.

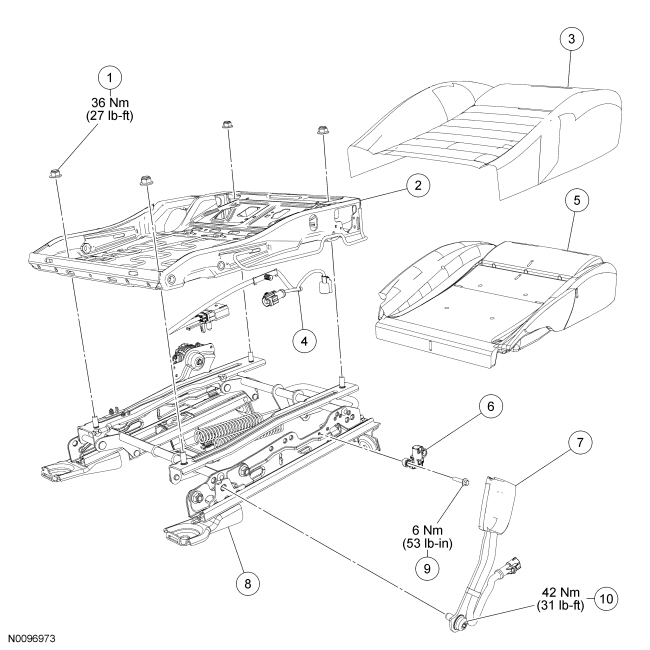

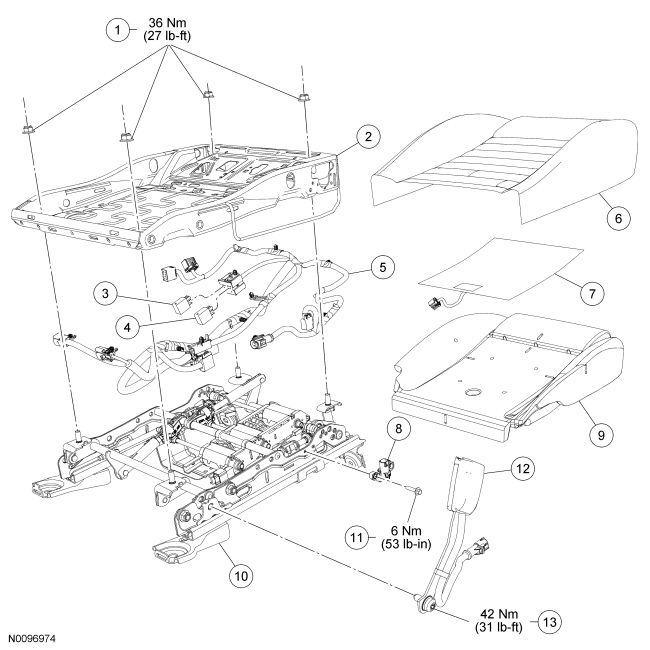

| Item | Part Number | Description |
|---|---|---|
| 1 | 611D11 | Side air bag module |
| 2 | 61019 | Backrest frame |
| 3 | N620480 | Side air bag module nuts |
| Item | Part Number | Description |
|---|---|---|
| 1 | W520113 | Seat track nut (4 required) |
| 2 | 63101 | Cushion frame |
| 3 | 62901 | Cushion cover |
| 4 | 14A699 | Seat wire harness |
| 5 | 632A23 | Cushion foam pad |
| 6 | 14B416 | Seat position sensor |
| 7 | 61203 | Safety belt buckle |
| 8 | 61711 | Seat track |
| 9 | W505256 | Seat position sensor bolt |
| 10 | — | Safety belt buckle bolt (part of 61203) |
| Item | Part Number | Description |
|---|---|---|
| 1 | W520113 | Seat track nuts (4 required) |
| 2 | 63101 | Cushion frame |
| 3 | 14N089 | Heated seat relay, driver |
| 4 | 14N089 | Heated seat relay, passenger |
| 5 | 14A699 | Seat wire harness |
| 6 | 62901 | Cushion cover |
| 7 | 14D698 | Cushion heater mat (if equipped) |
| 8 | 14B416 | Seat position sensor |
| 9 | 632A23 | Cushion foam pad |
| 10 | 61711 | Seat track |
| 11 | W505256 | Seat position sensor bolt |
| 12 | 61203 | Safety belt buckle |
| 13 | — | Safety belt buckle bolt (part of 61203) |

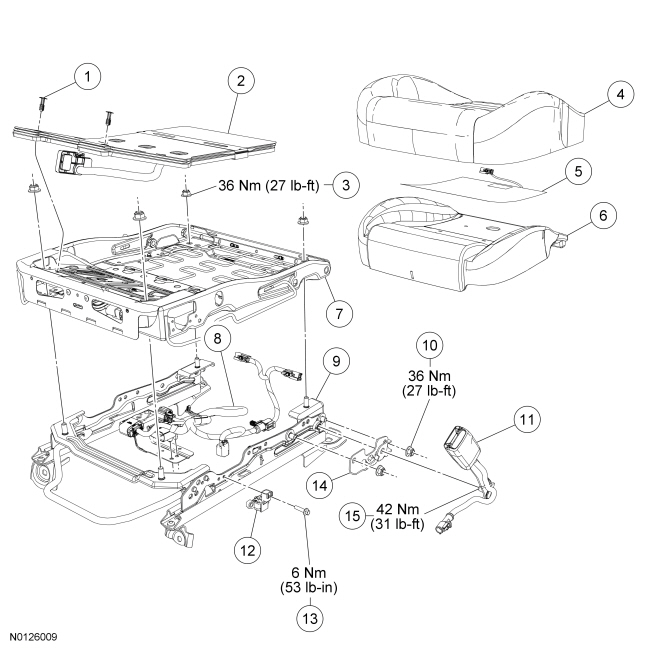

NOTE: Production Occupant Classification System (OCS) system is shown. For OCS system service kit, refer to Occupant Classification Sensor procedure in Section 501-20B .
NOTE: Manual seat shown, power similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | — | Pin-type retainer [part of production Occupant Classification System (OCS) system] |
| 2 | — | OCS bladder (part of 632A22) |
| 3 | W520113 | Seat track nuts |
| 4 | 62900 | Cushion trim cover |
| 5 | — | Cushion heater mat (if equipped) |
| 6 | — | Cushion foam pad (part of 632A22) |
| 7 | 63100 | Cushion frame |
| 8 | 14A576 | Wire harness |
| 9 | 61704 | Seat track |
| 10 | W520113 | Bracket nut (2 required) |
| 11 | 61202 | Safety belt buckle |
| 12 | 14B416 | Seat position sensor |
| 13 | W505256 | Seat position sensor bolt |
| 14 | — | Safety belt buckle bracket |
| 15 | — | Safety belt buckle bolt (part of 61202) |
