SECTION 501-10: Seating
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Seat Cushion — Rear

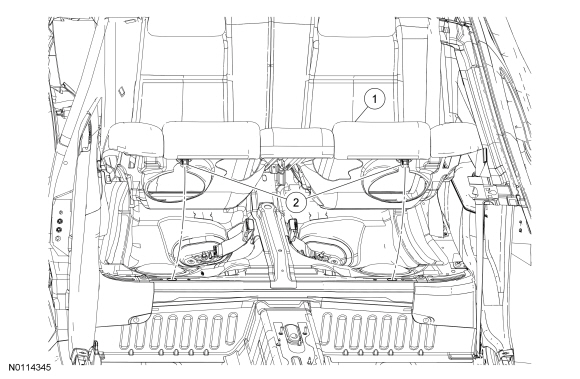

Item Part Number Description
1 — Seat cushion assembly
2 — Release tabs (part of 60524)

Removal

  1. From under the front of the rear cushion assembly, push in on each of the 2 seat cushion release tabs, lift up at the front and remove the rear cushion assembly.

Installation

  1. NOTE: Make sure the safety belt webbing is not twisted and the safety belts and buckles are accessible to the occupants.

    Align the cushion assembly and push down, engaging the retainers.
