SECTION 501-10: Seating
2014 Mustang Workshop Manual
DISASSEMBLY AND ASSEMBLY
Procedure revision date: 01/07/2013

Seat Backrest — Rear, Coupe

NOTE: RH shown, LH similar.

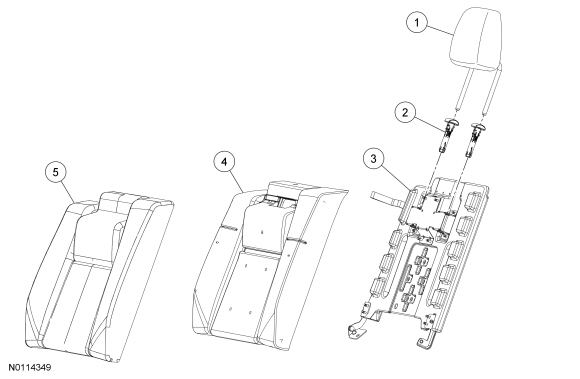

Item Part Number Description
1 611A08 Head restraint assembly
2 610A18 Head restraint guide sleeve (2 required)
3 60508 RH/ LH 60509 Backrest panel
4 66800 RH/ 66801 LH Backrest foam pad
5 66600 RH/ 66601 LH Backrest cover

Disassembly

  1. Remove the rear seat backrest. For additional information, refer to Seat Backrest — Rear in this section.

  1. NOTICE: Use care when separating the backrest cover from the hook-and-loop strip. The hook-and-loop strip can be torn from the seat backrest foam.

    Invert the backrest cover up the backrest to the head restraint.
    1. Detach the backrest cover hook-and-loop strip at the lower outboard side.
    1. At the bottom of the backrest cover, disengage the J-clips.
    1. Detach the hook-and-loop strips and separate the backrest cover from the backrest foam pad.
    1. Invert the backrest cover up the backrest to the head restraint.
  1. Remove the head restraint assemblies.
  1. Remove the backrest cover.
  1. Remove the backrest foam pad.

  1. NOTE: Typical backrest frame shown.

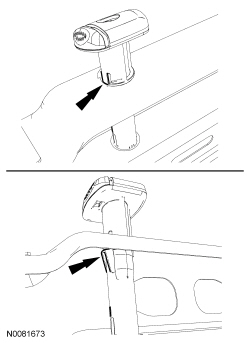

    Push the tab in on each head restraint guide sleeve to disengage the retainer, pull up and remove.
  1. To assemble, reverse the disassembly procedure.
