SECTION 501-11: Glass, Frames and Mechanisms
| 2014 Mustang Workshop Manual
|
REMOVAL AND INSTALLATION
| Procedure revision date: 01/07/2013
|

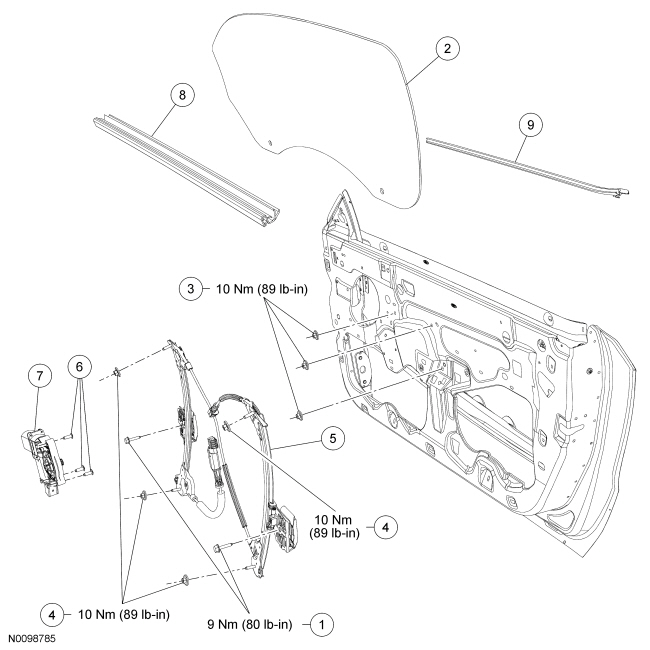

NOTE: Coupe shown, convertible similar.
NOTE: RH side shown, LH side similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 63231A06 | Door window glass bolts and sleeves (2 required) |
| 2 | 6321410 RH/ 6321411 LH | Door window glass (coupe) |
| 2 | 7621410 RH/ 7621411 LH | Door window glass (convertible) |
| 3 | N621907 | Door window motor nuts (3 required) |
| 4 | N621907 | Door window regulator nuts (4 required) |
| 5 | 6323208 RH/ 6323209 LH | Door window regulator |
| 6 | — | Door window regulator motor screws (3 required) |
| 7 | 6323394 RH/ 6323395 LH | Door window regulator motor |
| 8 | 6321456 RH/ 6321457 LH | Interior beltline weatherstrip |
| 9 | 6321452 RH/ 6321453 LH | Exterior beltline weatherstrip |
