SECTION 501-11: Glass, Frames and Mechanisms
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Window Control Switch

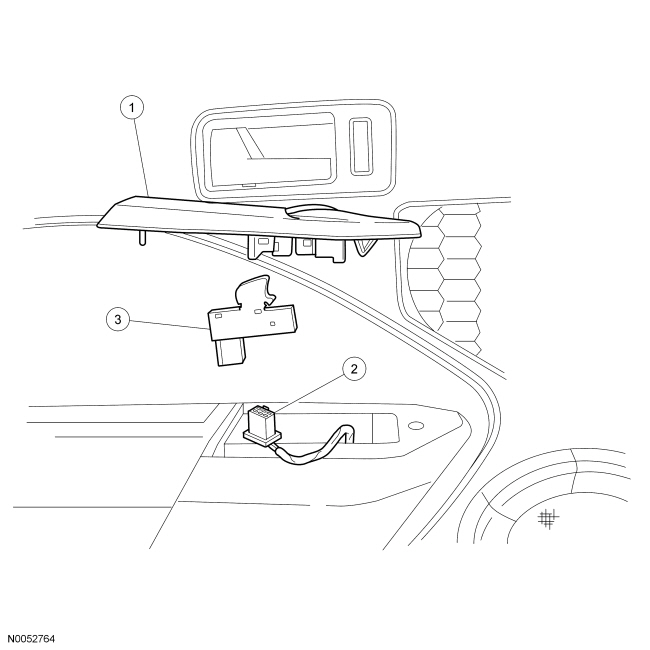

NOTE: LH side shown, RH side similar.

NOTE: Coupe shown, convertible similar.


Item Part Number Description
1 241A22 Door panel switch plate
2 — Window control switch electrical connector (part of 14630/14631)
3 14529 Window control switch

Removal and Installation

  1. NOTICE: Use a shop towel or similar material between the tool and the door trim panel or damage to the door trim panel may occur.

    Release the clip and remove the door panel switch plate.
  1. Release the tabs and remove the window control switch.
  1. To install, reverse the removal procedure.
