SECTION 501-11: Glass, Frames and Mechanisms
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Window Glass — Rear Quarter, Convertible

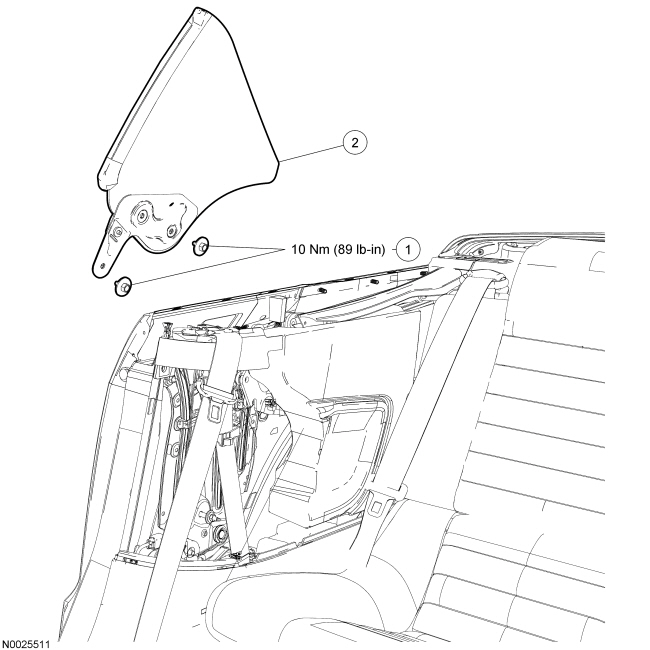

Item Part Number Description
1 W711156 Rear quarter window glass bolts (2 required)
2 7629710 RH/ 7629711 LH Rear quarter window glass

Removal

NOTE: The rear quarter glass seal (division bar) is bonded to the glass and cannot be serviced separately.

  1. Remove the rear quarter trim panel. For additional information, refer to Section 501-05 .
  1. Remove the 2 rear quarter glass bolts and the rear quarter window glass.

Installation

  1. Install the rear quarter window glass and finger-tighten the 2 bolts.

  1. NOTE: If installing a new rear quarter glass due to a torn/separating quarter glass seal (division bar), make sure the front door glass is adjusted correctly. For additional information, refer to Window Glass Adjustment — Front Door in this section.

    Adjust the rear quarter window glass. For additional information, refer to Window Glass Adjustment — Rear Quarter, Convertible in this section.
