Door Latch

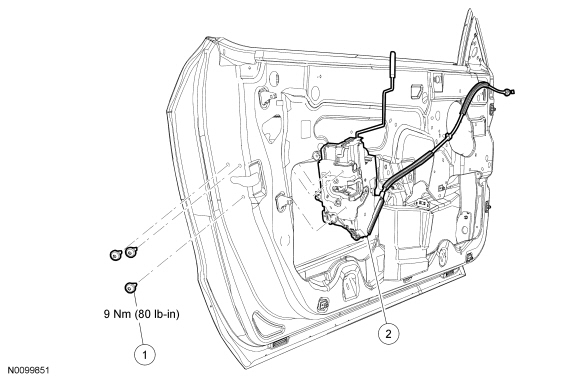

NOTE: LH side shown, RH side similar.

Removal and Installation

1. Raise the door window glass to the full-up position.

2. Remove the door trim panel. For additional information, refer to Section 501-05 .

3. Position the water shield aside.

4. Open the clip, and disconnect the exterior door handle actuating rod.

5. For the driver door, disconnect the door lock cylinder actuating rod.

6. Disconnect the door latch electrical connector.

7. Disconnect the door latch release cable from the guide clip.

8. Disconnect the manual door lock rod from the clip.

9. Remove the 3 door latch bolts.
   • To install, tighten to 9 Nm (80 lb-in).

10. Remove the door latch.

11. To install, reverse the removal procedure.
    • After installation, carry out the door handle to latch rod adjustment. For additional information, refer to Door Handle to Latch Rod Adjustment in this section.
