SECTION 501-14: Handles, Locks, Latches and Entry Systems
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Door Lock Cylinder

NOTE: Inner door sheet metal shown removed for clarity.

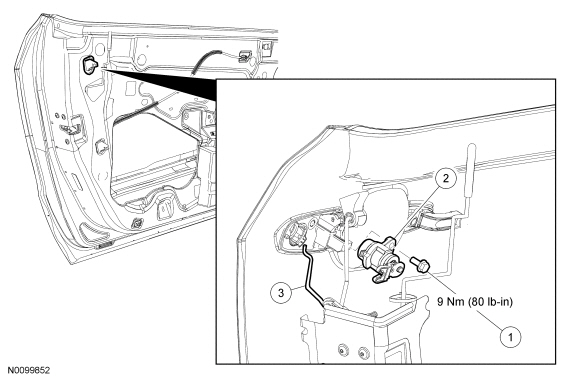

Item Part Number Description
1 W709891 Door lock cylinder bolt
2 5421991 Door lock cylinder
3 6322135 Door lock cylinder actuating rod

Removal and Installation

  1. Raise the door window glass to the full-up position.
  1. Remove the door trim panel. For additional information, refer to Section 501-05 .
  1. Position the water shield aside.
  1. Remove the bolt and turn the door lock cylinder clockwise one-eighth of a turn.
  1. Disconnect the door lock cylinder actuating rod and remove the door lock cylinder.
  1. To install, reverse the removal procedure.
