SECTION 501-14: Handles, Locks, Latches and Entry Systems
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Luggage Compartment Lid Lock Cylinder — Convertible

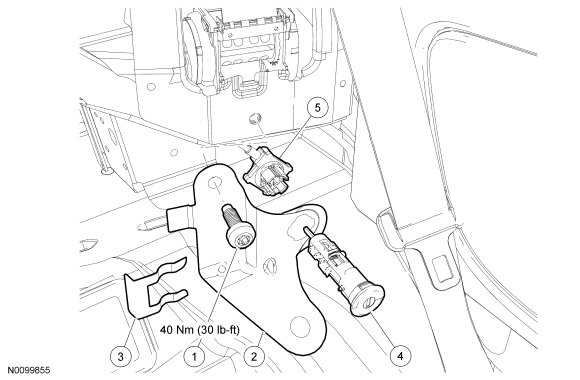

Item Part Number Description
1 — Safety belt retractor bolt
2 7643268 Luggage compartment lid lock cylinder bracket
3 7622023 Luggage compartment lid lock cylinder retainer
4 7643262 Luggage compartment lid lock cylinder
5 — Luggage compartment lid lock cylinder actuating cable (part of the luggage compartment lid latch)

Removal and Installation

  1. Remove the rear seat backrest. For additional information, refer to Section 501-10 .
  1. Remove the safety belt retractor bolt.
  1. Disconnect the luggage compartment lid latch actuator cable from the luggage compartment lid lock cylinder.
  1. Slide the luggage compartment lid lock cylinder retainer off the lock cylinder.
  1. Remove the luggage compartment lid lock cylinder.
  1. To install, reverse the removal procedure.
