SECTION 501-16: Wipers and Washers	2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION	Procedure revision date: 01/07/2013

Washer Pump and Reservoir

Material
Item	Specification
Premium Quality Windshield Washer Fluid (Canada) CXC-37-(A, B, D, and F) (Canada)	—
Premium Windshield Washer Concentrate (US) ZC-32-A or B (US)	WSB-M8B16-A2

Removal and Installation

Windshield washer pump or windshield washer fluid reservoir

WARNING: Carefully read cautionary information on product label. For emergency medical information seek medical advice. In the USA or Canada on Ford/Motorcraft products call: 1-800-959-3673. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.

NOTE: To prevent spilling windshield washer fluid, drain the windshield washer fluid reservoir before removing the windshield washer pump or windshield washer fluid reservoir.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to Section 100-02 .

Remove the RH fender splash shield. For additional information, refer to Section 501-02 .

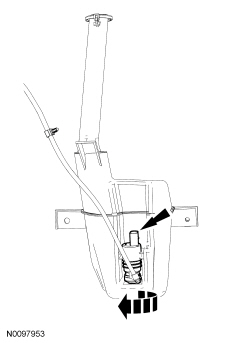

Rotate the windshield washer pump in a clockwise direction to access the washer jet hose C-lock coupler.

Disconnect the windshield washer pump-to-washer jet hose. For additional information, refer to C-Lock Coupler in this section.

Disconnect the windshield washer pump electrical connector.

Windshield washer pump only

Remove the windshield washer pump.
- Pull the windshield washer pump upward, away from the windshield washer fluid reservoir.
- NOTICE: When installing the windshield washer pump, be careful not to damage the rubber grommet.
  To install, press the windshield washer pump down until fully seated and rotate counterclockwise.

Windshield washer fluid reservoir

Remove the 2 windshield washer fluid reservoir bolts.
- To install, tighten to 6 Nm (53 lb-in).

Remove the windshield washer fluid reservoir nut and the windshield washer fluid reservoir.
- To install, tighten to 6 Nm (53 lb-in).

Windshield washer pump or windshield washer fluid reservoir

NOTICE: Do not operate the windshield pump before filling the windshield washer fluid reservoir. Failure to do so could result in premature pump failure.
To install, reverse the removal procedure.
