SECTION 501-16: Wipers and Washers
| 2014 Mustang Workshop Manual
|
REMOVAL AND INSTALLATION
| Procedure revision date: 01/07/2013
|

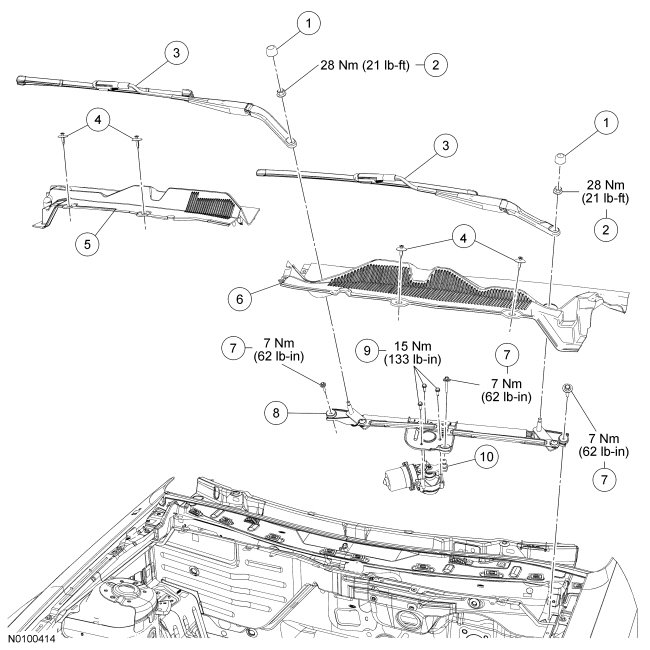

| Item | Part Number | Description |
|---|---|---|
| 1 | 17C526 | Wiper pivot arm nut covers (2 required) |
| 2 | W706109 | Wiper pivot arm nuts (2 required) |
| 3 | 17526 RH/ 17527 LH | Wiper pivot arms |
| 4 | N804837 | Cowl top vent screen pin-type retainers (4 required) |
| 5 | 63018A16 | RH cowl top vent screen |
| 6 | 63018A17 | LH cowl top vent screen |
| 7 | W707532 | Windshield wiper mounting arm and pivot shaft bolts (3 required) |
| 8 | 17508 | Windshield wiper mounting arm and pivot shaft |
| 9 | — | Windshield wiper motor bolts (3 required) |
| 10 | 17504 | Windshield wiper motor |

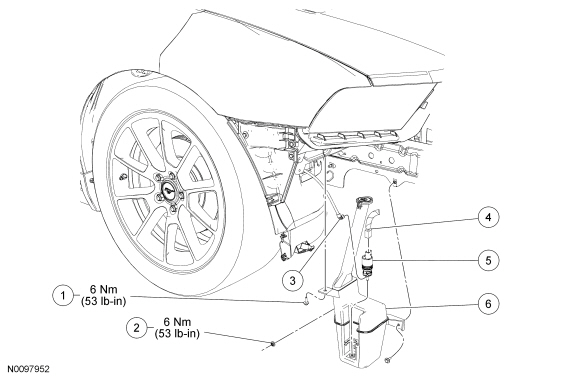

| Item | Part Number | Description |
|---|---|---|
| 1 | W710381 | Windshield washer fluid reservoir bolt (2 required) |
| 2 | W623332 | Windshield washer fluid reservoir nut |
| 3 | 17A605 | Washer pump-to-washer jet hose connector |
| 4 | 14A005 | Windshield washer pump electrical connector |
| 5 | 17664 | Windshield washer pump (part of 17618) |
| 6 | 17618 | Windshield washer fluid reservoir (includes 17664) |

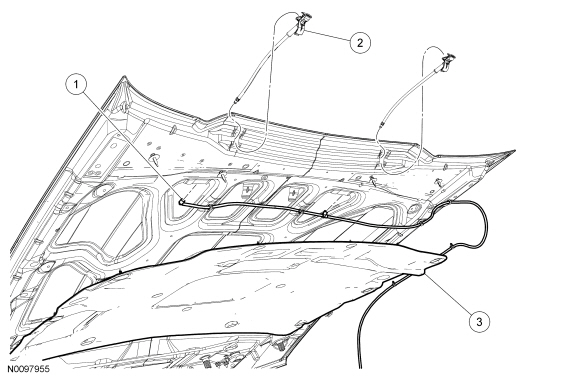

| Item | Part Number | Description |
|---|---|---|
| 1 | 17A605 | Washer jet-to-washer jet hose |
| 2 | 17603 | Washer jet |
| 3 | 16738 | Hood insulator |
