SECTION 501-18: Convertible Top
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Convertible Top — Exploded View

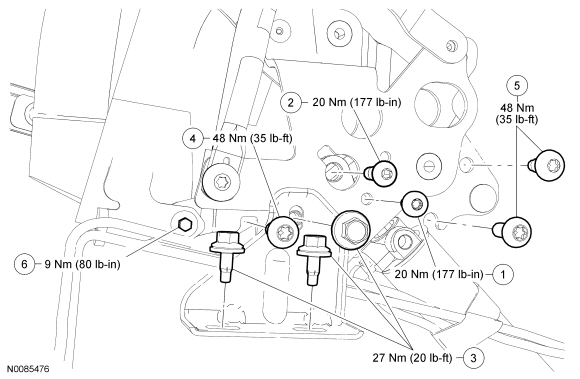

Convertible Top Assembly (View 1 of 3)

Item Part Number Description
1 W709053 Hydraulic lift cylinder bracket bolt (2 required)
2 N808519 Clevis-to-hydraulic lift cylinder rod bolt (2 required)
3 W711423 L-bracket bolts (6 required)
4 W711772 Pivot bracket rear bolt (2 required)
5 W711393 Pivot bracket front bolts (4 required)
6 W506413 Convertible top frame No. 5 bow pivot bolt (2 required)

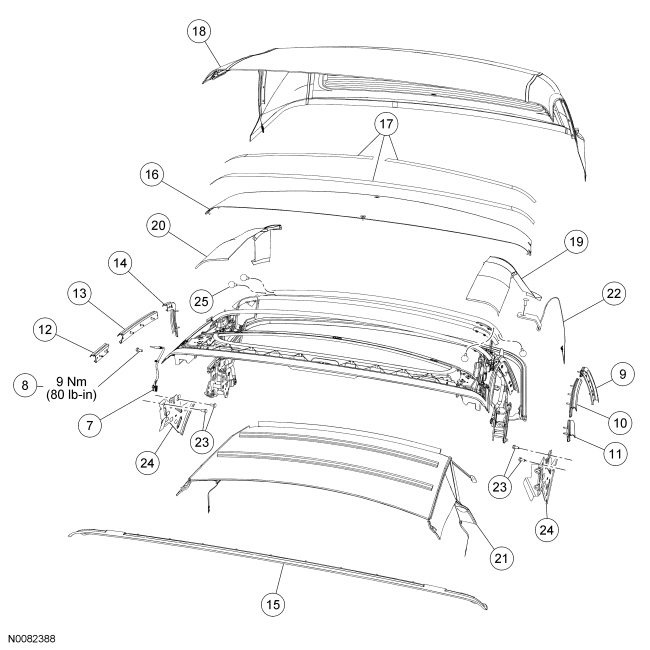

Convertible Top Assembly (View 2 of 3)

Item Part Number Description
7 14018 Convertible top ajar switch
8 — Convertible top ajar switch screw
9 51555 LH rear weatherstrip retainer channel
10 51561 LH center weatherstrip retainer channel
11 51543 LH front weatherstrip retainer channel
12 51542 RH front weatherstrip retainer channel
13 51560 RH center weatherstrip retainer channel
14 51554 RH rear weatherstrip retainer channel
15 514A34 Compression panel
16 — Header form panel (part of 7653038)
17 — Double-sided tape
18 52700 Top cover assembly
19 54212 LH stay pad
20 54213 RH stay pad
21 51916 Convertible top headliner
22 52806 RH/ 52807 LH Convertible top tension cable
23 W710918 Pivot bracket-to-quarter panel bracket bolts (6 required)
24 28126 RH/ 28127 LH Pivot bracket-to-quarter panel brackets
25 W707504 Rivet (37 required)

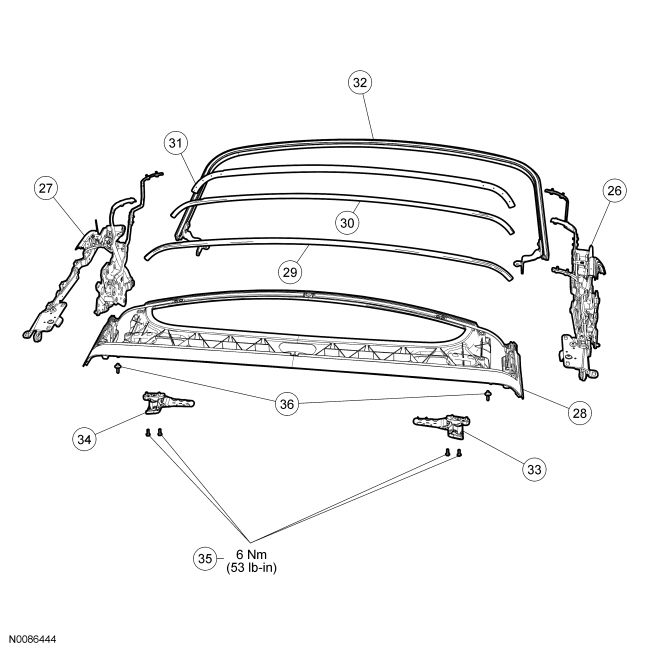

Convertible Top Assembly (View 3 of 3)

Item Part Number Description
26 53105 Convertible top frame LH side rail
27 53104 Convertible top frame RH side rail
28 53024 Convertible top frame No. 1 bow
29 51274 Convertible top frame No. 2 bow
30 51269 Convertible top frame No. 3 bow
31 52178 Convertible top frame No. 4 bow
32 52188 Convertible top frame No. 5 bow
33 50508-B LH convertible top latch
34 50508-A RH convertible top latch
35 — Convertible top latch screws (4 required)
36 514A38 Dowel pins (2 required)
  1. For additional information, refer to the procedures in this section.
