SECTION 501-19: Bumpers
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013
Bumper Cover — Front, 3.7L
Removal
With the vehicle in NEUTRAL, position it on a hoist. Refer to
Section 100-02
.
To install, tighten to 5 Nm (44 lb-in).

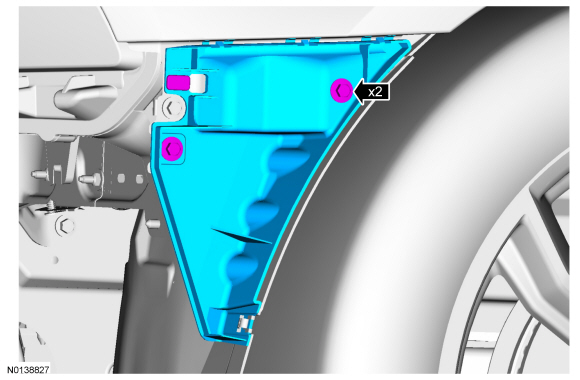

Three on each side.
To install, tighten to 3.2 Nm (28 lb-in).
To install, tighten to 1.9 Nm (17 lb-in).
If required.
To install, tighten to 2.2 Nm (19 lb-in).
Installation
To install, reverse the removal procedure.
