SECTION 501-19: Bumpers
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013
Bumper Cover — Front, 5.0L
Removal
All Vehicles
With the vehicle in NEUTRAL, position it on a hoist. Refer to
Section 100-02
.

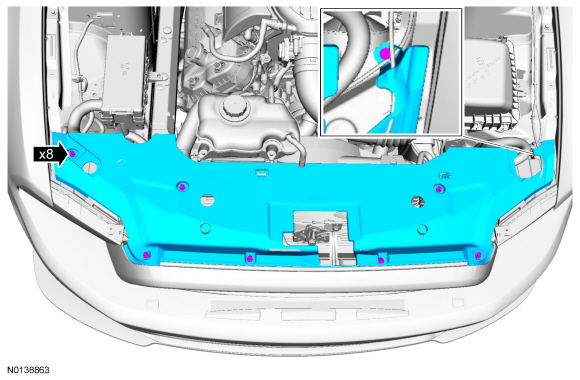

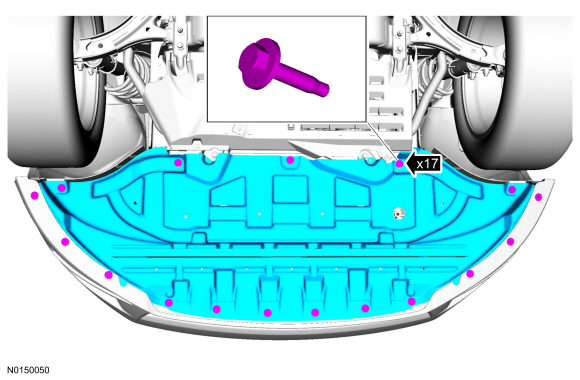

To install, tighten to 5.4 Nm (48 lb-in).

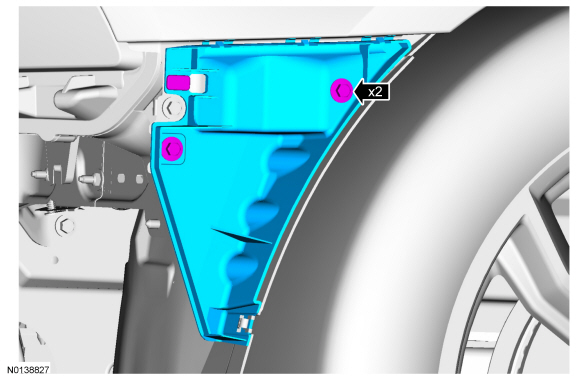

Three on each side.

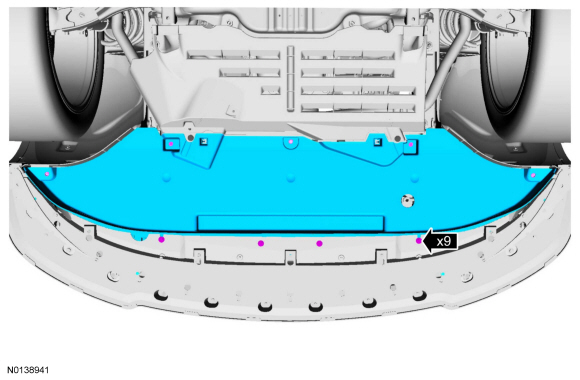

To install, tighten to 3 Nm (27 lb-in).

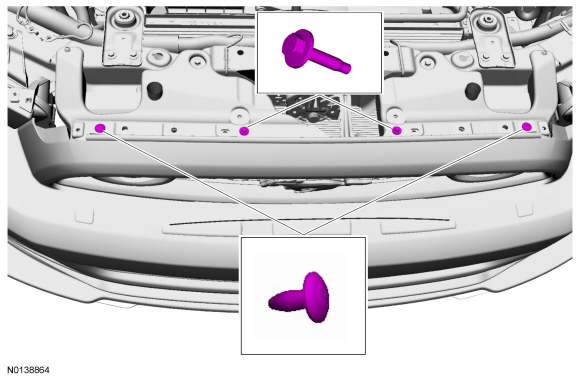

GT vehicles
To install, tighten to 1.9 Nm (17 lb-in).
California Special Vehicles
To install, tighten to 1.3 Nm (12 lb-in).

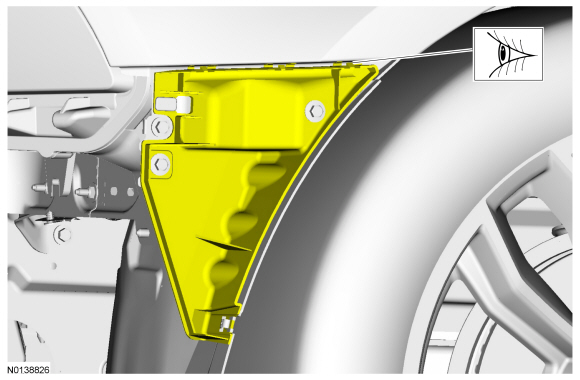

All Vehicles

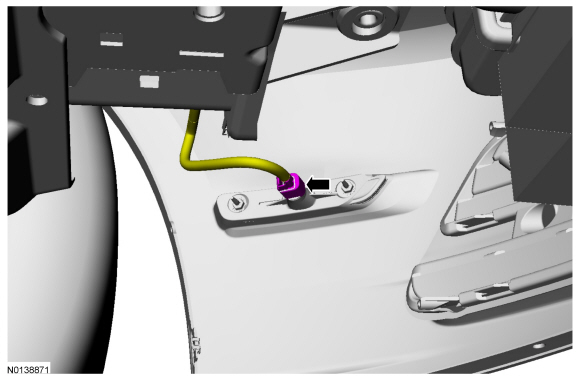

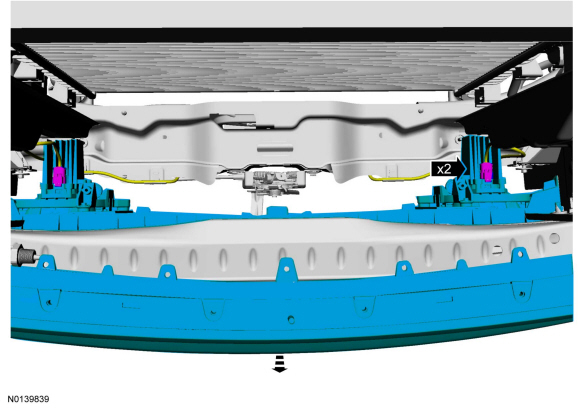

On each side.

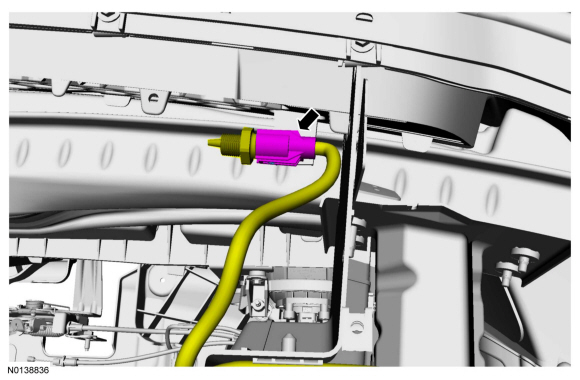

If required.

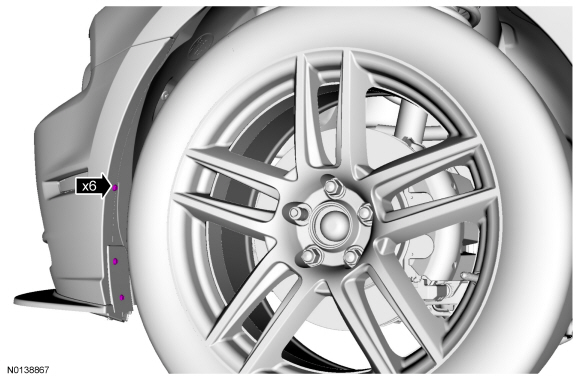

To install, tighten to 2.2 Nm (19 lb-in).
Installation
To install, reverse the removal procedure.
