SECTION 501-19: Bumpers
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013
Bumper Cover — Front, GT500
Removal
With the vehicle in NEUTRAL, position it on a hoist. Refer to
Section 100-02
.

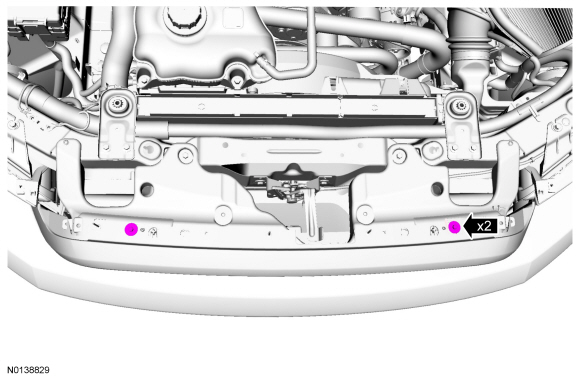

To install, tighten to 5.4 Nm (44 lb-in).
On each side.
To install, tighten front bumper cover-to-air splitter screws to 1.7 Nm (15 lb-in).

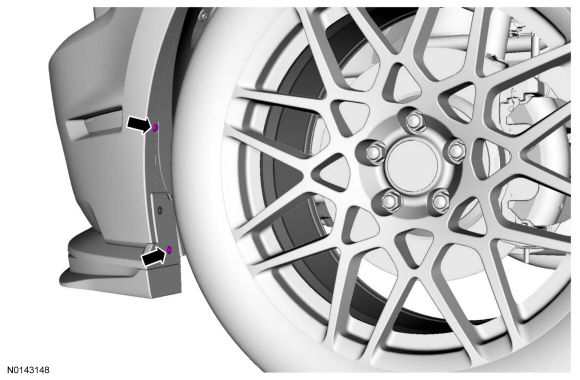

To install, tighten front bumper cover-to-Inner fender screws to 1.7 Nm (15 lb-in).
To install, tighten to 1.3 Nm (12 lb-in).
On each side.
On each side.
NOTE:
Inspect reinforcement for correct alignment and damage.
If required.
To install, tighten to 2.2 Nm (19 lb-in).
Installation
To install, reverse the removal procedure.
