Bumper Cover — Rear

Removal

1. With the vehicle in NEUTRAL, position it on a hoist. Refer to Section 100-02 .

2. Remove the luggage compartment rear trim panel.

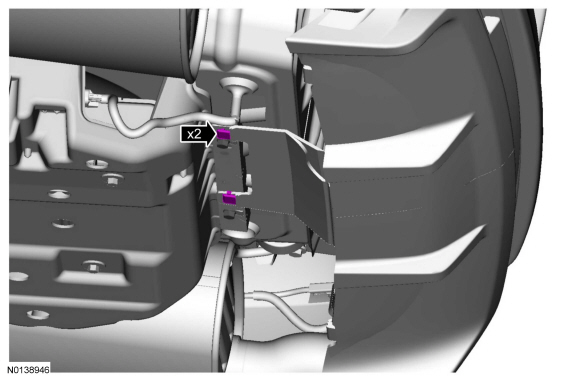

3. On each side.
   • To install, tighten to 3.2 Nm (28 lb-in).

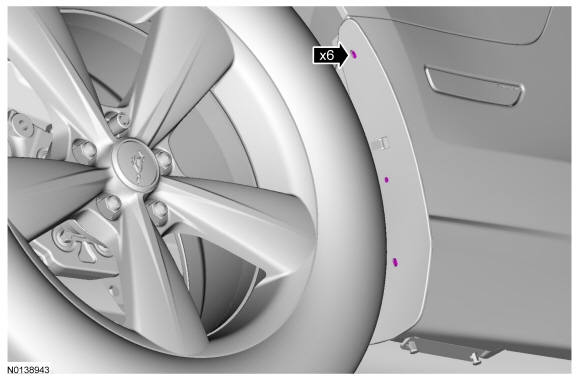

4. On each side.

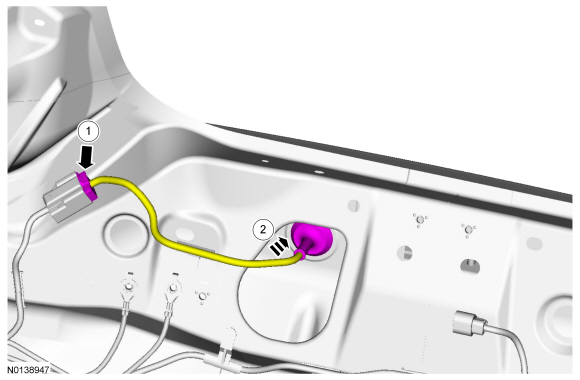

7. Feed the wiring harness through the rear of the vehicle.

10. NOTE: If required.

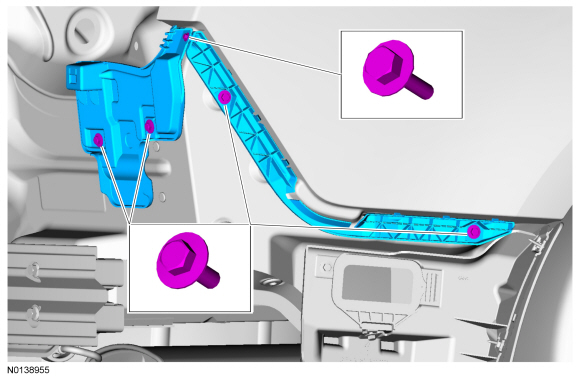

    To install, tighten the rear bumper cover reinforcement-to-body bolts to 25 Nm (18 lb-ft).

Installation

1. To install, reverse the removal procedure.
