SECTION 501-20A: Safety Belt System	2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION	Procedure revision date: 01/07/2013

Child Safety Seat Tether Anchor — LATCH

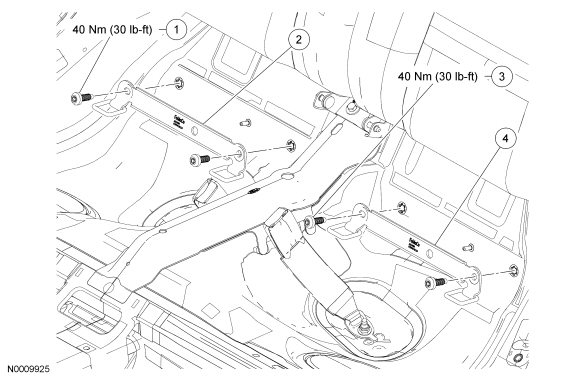

Item	Part Number	Description
1	—	Lower anchors and tethers for children bolt (part of 601B28) (2 required)
2	601B28	Lower anchors and tethers for children
3	—	Lower anchors and tethers for children bolt (part of 601B28) (2 required)
4	601B28	Lower anchors and tethers for children

Removal and Installation

Remove the rear seat cushion. For additional information, refer to Section 501-10 .

Remove the 2 lower anchors and tethers for children bolts.
- To install, tighten to 40 Nm (30 lb-ft).

Remove the lower anchors and tethers for children attachment.
- When installing, make sure the lower anchors and tethers for children is positioned with the locator pin going through the hole provided in the lower anchors and tethers for children attachment.

NOTE: Before installation, make sure the safety belt webbing is not twisted and the safety belts and buckles are accessible to the occupants.
To install, reverse the removal procedure.
