SECTION 501-20B: Supplemental Restraint System
| 2014 Mustang Workshop Manual
|
DESCRIPTION AND OPERATION
| Procedure revision date: 01/07/2013
|
The air bag SRS is designed to provide increased collision protection for front seat occupants, in addition to the 3-point safety belt system. Safety belt use is necessary to obtain the best occupant protection and to receive the full advantage of the SRS .

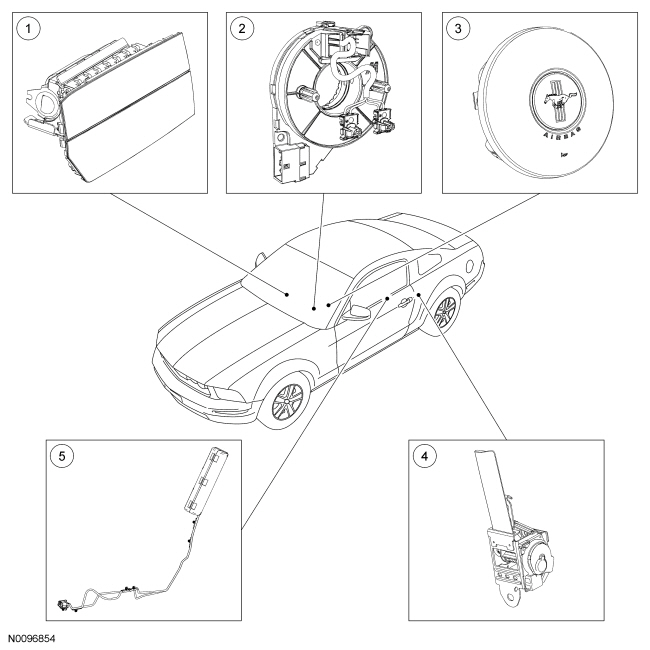

The serviceable air bag and safety belt pretensioner SRS components are shown in the following illustrations.
| Item | Part Number | Description |
|---|---|---|
| 1 | 044A74 | Passenger air bag module assembly (includes air bag trim cover [04338]) |
| 2 | 14A664 | Clockspring |
| 3 | 043B13 | Driver air bag module |
| 4 | 611B09 LH/ 611B08 RH | Safety belt retractor and pretensioner (includes BTS [part of 611B08]) |
| 5 | 611D11 LH/ 611D10 RH | Seat side air bag module |

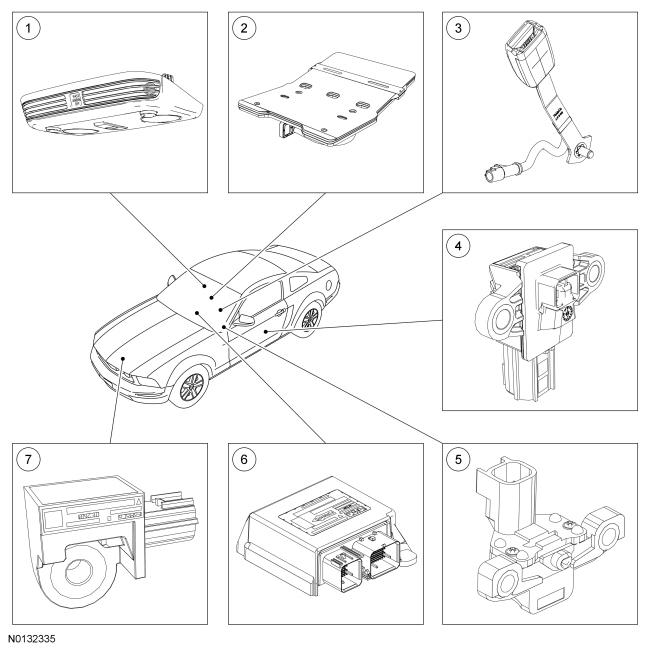

| Item | Part Number | Description |
|---|---|---|
| 1 | — | PAD indicator (part of 519A70) |
| 2 | — | OCS (bladder and hose with pressure sensor and integrated OCSM ) (part of 632A22) |
| 3 | 61203 | Safety belt buckle (includes safety belt buckle switch) |
| 4 | 14B345 | Driver/passenger front door side impact sensor (pressure sensor) |
| 5 | 14B416 | Seat track position sensor |
| 6 | 14B321 | RCM |
| 7 | 14B345 | Front impact severity sensor |
