2014 Mustang Workshop Manual

SECTION 501-20B: Supplemental Restraint System	2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION	Procedure revision date: 01/07/2013

Passenger Airbag Deactivation (PAD) Indicator

NOTE: The Passenger Air Bag Deactivation (PAD) indicator is a replaceable 14V bulb integrated into the overhead console.

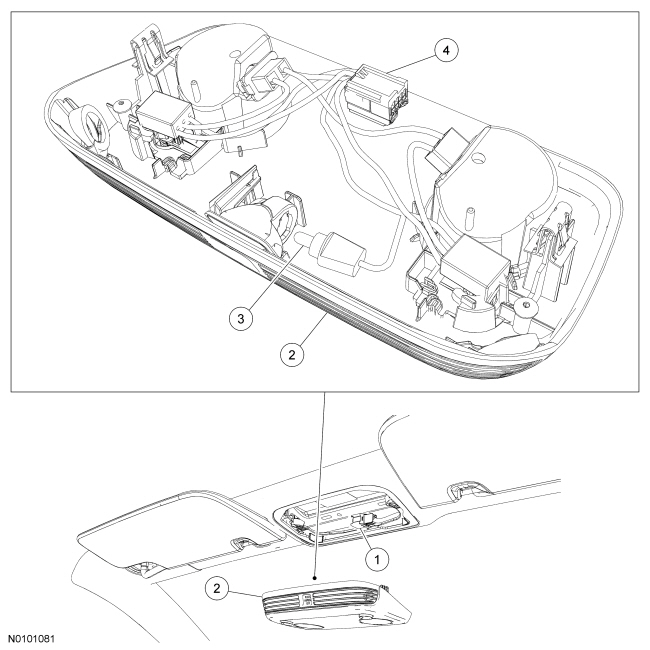

Item	Part Number	Description
1	—	Electrical connector (part of 14334 coupe/14335 convertible)
2	519A70	Overhead console
3	No. 73 (14V)	Passenger Air Bag Deactivation (PAD) indicator
4	—	Electrical connector (part of 519A70)

NOTE: The ignition must be OFF if disconnecting the PAD indicator electrical connector. Otherwise, a DTC will be set in the Restraints Control Module (RCM) memory and must be cleared before releasing the vehicle to the customer.
Turn the ignition OFF and wait at least one minute.

Pull downward to release the 2 tabs and detach the overhead console from the headliner.

Remove the PAD indicator bulb.
- If equipped with an intrusion and inclination sensor, remove the cover and 2 screws. For additional information, refer to Section 419-01A .

To install, reverse the removal procedure.
