Side Impact Sensor

Removal and Installation

 WARNING: If a vehicle has been in a crash, inspect the restraints control module (RCM) and the impact sensor (if equipped) mounting areas for deformation. If damaged, restore the mounting areas to the original production configuration. A new RCM and sensors must be installed whether or not the airbags have deployed. Failure to follow these instructions may result in serious personal injury or death in a crash.

NOTE: Removal steps in this procedure may contain installation details.

1. Depower the SRS . Refer to Supplemental Restraint System (SRS) Depowering and Repowering .

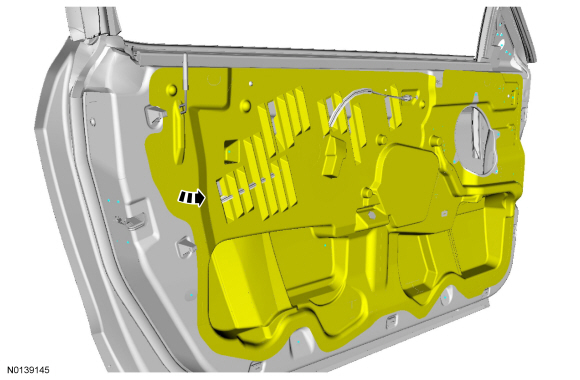

2. Remove the door trim panel. Refer to Section 501-05 .

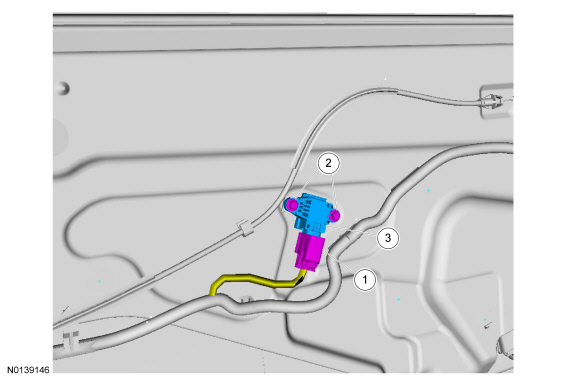

4. 1. -
   2. To install, tighten to 3 Nm (27 lb-in).
   3. -

5. To install, reverse the removal procedure.
