SECTION 502-00: Uni-Body, Subframe and Mounting System
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

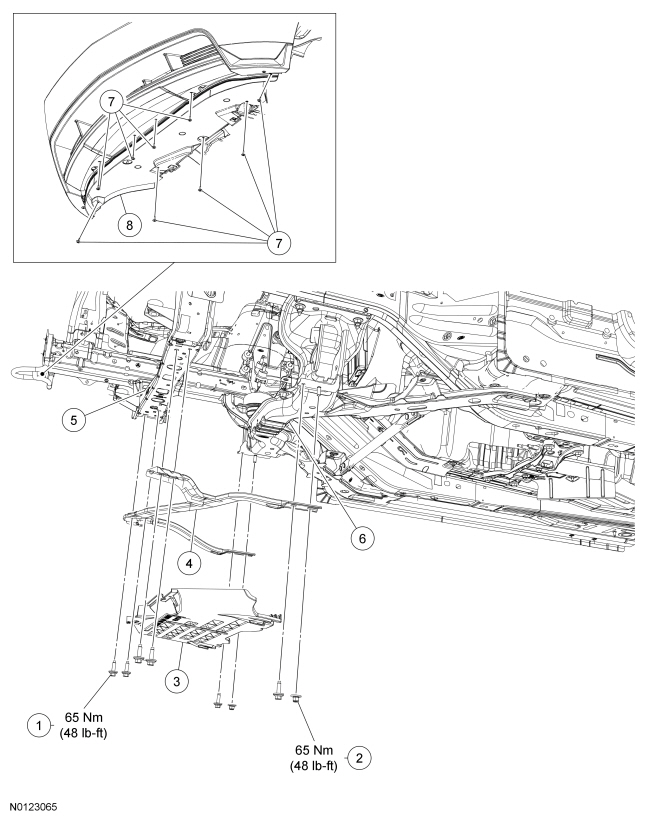

Crossmember Brace — Exploded View


Item Part Number Description
1 W714780 Crossmember brace bolts
2 W711553 Crossmember brace nuts
3 — Crossmember brace cover (part of 108A02)
4 108A02 Crossmember brace
5 5019 Crossmember — front
6 5025 Subframe — front
7 W715060 Front splash shield screws (9 required)
8 17626 Front splash shield
  1. Refer to the procedures and/or exploded views in this section for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
