SECTION 502-00: Uni-Body, Subframe and Mounting System
| 2014 Mustang Workshop Manual
|
REMOVAL AND INSTALLATION
| Procedure revision date: 01/07/2013
|

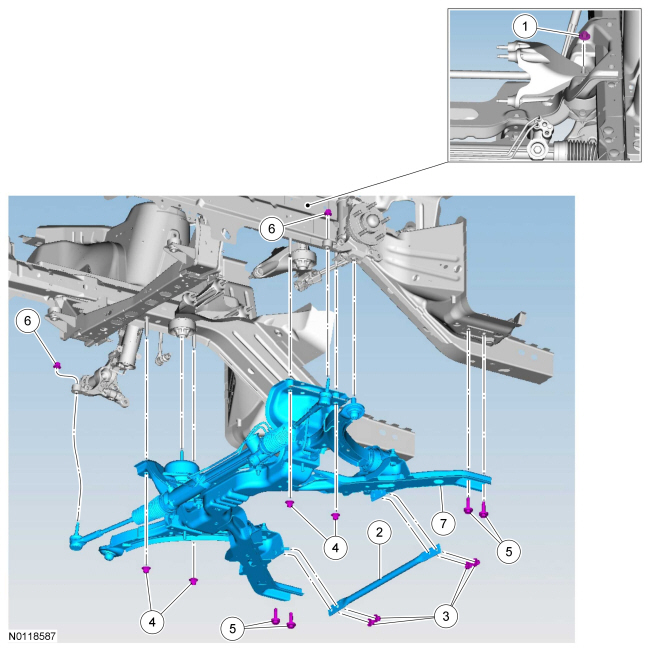

| Item | Part Number | Description |
|---|---|---|
| 1 | W712530 | Engine insulator nut - 55 Nm (41 lb-ft) |
| 2 | 5A095 | Front crossmember brace |
| 3 | W711553 | Front crossmember brace nuts - 48 Nm (35 lb-ft) |
| 4 | W707246 | Front subframe nuts - 115 Nm (85 lb-ft) |
| 5 | W711075 | Front subframe bolts - 115 Nm (85 lb-ft) |
| 6 | W705606 | Tie-rod end nuts - 80 Nm (59 lb-ft) |
| 7 | 5025 | Front subframe |
