SECTION 303-01A: Engine — 3.7L
2014 Mustang Workshop Manual
IN-VEHICLE REPAIR
Procedure revision date: 01/07/2013

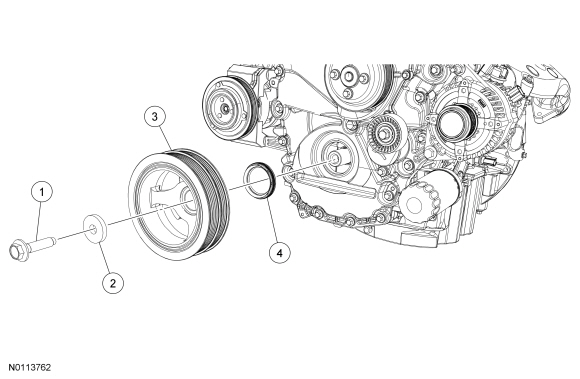

Crankshaft Pulley and Crankshaft Front Seal — Exploded View


Item Part Number Description
1 W701512 Crankshaft pulley bolt
2 N806165 Washer
3 6312 Crankshaft pulley
4 6700 Crankshaft front seal
  1. Refer to the procedures and/or exploded views in this section for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
