SECTION 303-01A: Engine — 3.7L
2014 Mustang Workshop Manual
IN-VEHICLE REPAIR
Procedure revision date: 01/07/2013

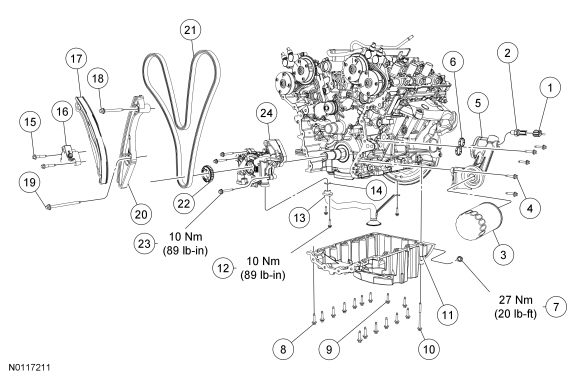

Engine Lubrication Components — Exploded View


Item Part Number Description
1 — Engine Oil Pressure (EOP) switch electrical connector (part of 12C508)
2 9278 EOP switch
3 6731 Engine oil filter
4 W503278 Oil filter adapter bolt (5 required)
5 6881 Oil filter adapter
6 6840 Oil filter adapter gasket
7 6730 Oil pan drain plug
8 W712943 Oil pan bolt (13 required)
9 W503279 Oil pan bolt (2 required)
10 W708221 Oil pan bolt
11 6675 Oil pan
12 W503278 Oil pump screen and pickup tube bolt (3 required)
13 6622 Oil pump screen and pickup tube
14 6625 Oil pump screen and pickup tube O-ring seal
15 N806177 Primary timing chain tensioner bolt (2 required)
16 6L266 Primary timing chain tensioner
17 6K255 RH primary timing chain tensioner arm
18 W715145 LH primary timing chain guide bolt
19 W714094 LH primary timing chain guide bolt
20 6B274 LH primary timing chain guide
21 6268 Primary timing chain
22 6306 Crankshaft timing sprocket
23 W503282 Oil pump bolt (3 required)
24 6600 Oil pump
  1. Refer to the procedures and/or exploded views in this section for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
