SECTION 303-01A: Engine — 3.7L
2014 Mustang Workshop Manual
IN-VEHICLE REPAIR
Procedure revision date: 01/07/2013

Valve Cover — RH


Special Tool(s)
Handle
205-153 (T80T-4000-W)
Installer, Differential Bearing Cone
205-142 (T80T-4000-J)

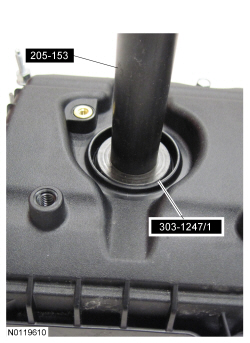

Installer, Spark Plug Tube Seal
303-1247/2
Remover, Spark Plug Tube Seal
303-1247/1

Material
Item Specification
Motorcraft® High Performance Engine RTV Silicone
TA-357 		WSE-M4G323-A6
Motorcraft® Metal Surface Prep
ZC-31-A 		—
Motorcraft® Silicone Gasket Remover
ZC-30 		—

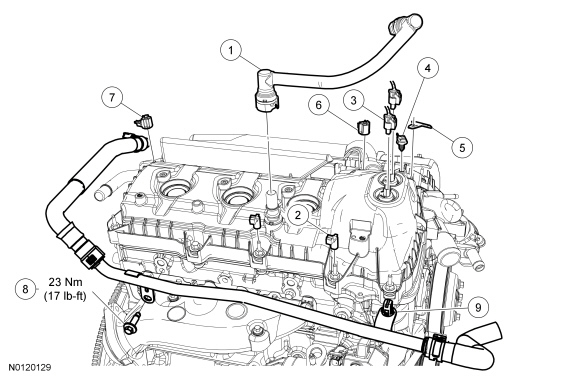

Valve Cover — RH (View 1 of 2)

Item Part Number Description
1 6A664 PCV tube
2 — RH valve cover stud bolt wiring harness retainer (part of 12C508) (2 required)
3 — RH Variable Camshaft Timing (VCT) electrical connector (part of 12C508) (2 required)
4 — RH valve cover wiring harness pin-type retainer (part of 12C508)
5 — RH valve cover stud bolt wiring harness retainer (part of 12C508)
6 — RH valve cover stud bolt wiring harness retainer (part of 12C508)
7 — RH valve cover stud bolt wiring harness retainer (part of 12C508)
8 W712679 Heater tube bolt
9 — Heater tube-to-valve cover stud bolt retainer (part of 18B402)

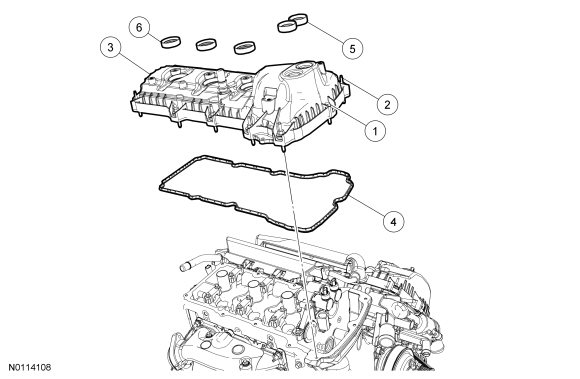

Valve Cover — RH (View 2 of 2)

Item Part Number Description
1 6C519 Valve cover bolt (3 required)
2 6C519 Valve cover stud bolt (8 required)
3 6582 RH valve cover
4 6584 RH valve cover gasket
5 6C535 Variable Camshaft Timing (VCT) solenoid seal (2 required)
6 6C535 Spark plug tube seal (3 required)

Removal

NOTICE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, may cause engine failure.

  1. Remove the RH ignition coils. For additional information, refer to Section 303-07A .
  1. Disconnect the PCV tube quick connect coupling from the RH valve cover. For additional information, refer to Section 310-00 .
  1. Disconnect the 2 RH Variable Camshaft Timing (VCT) solenoid electrical connectors.
  1. Detach all of the wiring harness retainers from the RH valve cover and stud bolts.
  1. Remove the heater tube bolt.
  1. Detach the heater tube retainer from the RH valve cover stud bolt.

  1. NOTICE: While removing the valve cover do not apply excessive force to the Variable Camshaft Timing (VCT) oil control solenoid or damage may occur.

    NOTICE: If the Variable Camshaft Timing (VCT) oil control solenoid sticks to the VCT seal, carefully wiggle the valve cover until the bond breaks free or damage to the VCT seal and VCT oil control solenoid may occur.

    NOTE: The plastic electrical connector on the VCT oil control solenoid will rotate approximately 12 degrees inside the steel housing, which is normal.

    Loosen the 8 stud bolts, 3 bolts and remove the RH valve cover.
  1. Inspect the 2 VCT solenoid seals. Remove any damaged seals.
  1. Inspect the spark plug tube seals. Remove any damaged seals.
  1. Clean the valve cover, cylinder head and engine front cover sealing surfaces with metal surface prep.

Installation

  1. NOTE: Installation of new seals is only required if damaged seals were removed.

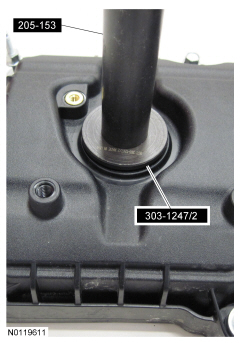

    Using the VCT Spark Plug Tube Seal Installer and Handle, install new spark plug tube seals.

  1. NOTE: Installation of new seals is only required if damaged seals were removed.

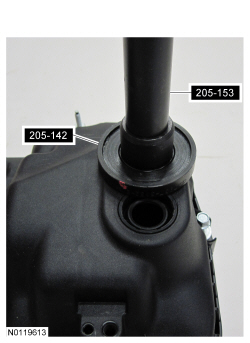

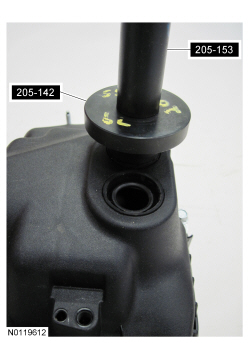

    Using the Differential Bearing Cone Installer and Handle, install new VCT solenoid seal(s).

  1. NOTICE: Failure to use the correct Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.

    NOTE: If the valve cover is not installed and the fasteners tightened within 4 minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow this procedure can cause future oil leakage.

    Apply an 8 mm (0.31 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-RH cylinder head joints.
  1. Using a new gasket, install the RH valve cover and tighten the 3 bolts and 8 stud bolts in the sequence shown.
  1. Ensure the VCT seals in the valve cover are below the top of the VCT oil control solenoid electrical connector or the VCT seal may leak oil.
  1. Attach the heater tube retainer to the RH valve cover stud bolt.
  1. Install the heater tube bolt.
  1. Attach all of the wiring harness retainers to the RH valve cover and stud bolts.
  1. Connect the 2 RH VCT solenoid electrical connectors.
  1. Connect the PCV tube quick connect coupling to the RH valve cover. For additional information, refer to Section 310-00 .
  1. Install the RH ignition coils. For additional information, refer to Section 303-07A .
