SECTION 303-01A: Engine — 3.7L
2014 Mustang Workshop Manual
IN-VEHICLE REPAIR
Procedure revision date: 01/07/2013

Valve Train Components — Exploded View

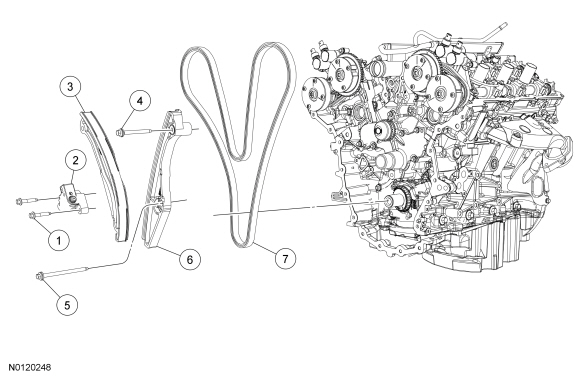

NOTE: Valve Train Components (View 1 of 2)


Item Part Number Description
1 W709818 Primary timing chain tensioner bolt (2 required)
2 6L266 Primary timing chain tensioner
3 6K255 RH primary timing chain tensioner arm
4 W715145 LH primary timing chain guide bolt
5 W714094 LH primary timing chain guide bolt
6 6B274 LH primary timing chain guide
7 6268 Primary timing chain

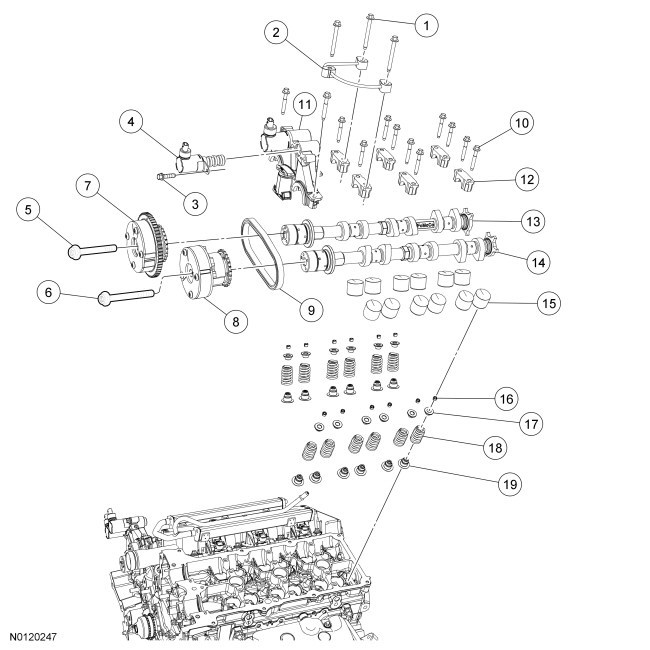

NOTE: Valve Train Components (View 2 of 2)

NOTE: LH shown, RH similar.


Item Part Number Description
1 W500305 Valve train oil tube bolt (3 required)
2 6K602 Valve train oil tube
3 W500215 Exhaust camshaft Variable Camshaft Timing (VCT) oil control solenoid bolt
4 6M280 Exhaust camshaft VCT oil control solenoid
5 6279 Intake camshaft VCT assembly bolt
6 6279 Exhaust camshaft VCT assembly bolt
7 6256 Intake camshaft VCT assembly
8 6256 Exhaust camshaft VCT assembly
9 6268 LH secondary timing chain
10 W710702 Camshaft cap bolt (12 required)
11 6B280 Camshaft mega cap
12 6A258 Camshaft cap (12 required)
13 6250 Intake camshaft
14 6250 Exhaust camshaft
15 6500 Valve tappet (12 required)
16 6518 Valve spring retainer key (24 required)
17 6514 Valve spring retainer (12 required)
18 6513 Valve spring (12 required)
19 6571 Valve stem seal (12 required)
  1. Refer to the procedures and/or exploded views in this section for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
