SECTION 303-01B: Engine — 5.0L (4V)
2014 Mustang Workshop Manual
IN-VEHICLE REPAIR
Procedure revision date: 01/07/2013

Engine Lubrication Components — Exploded View

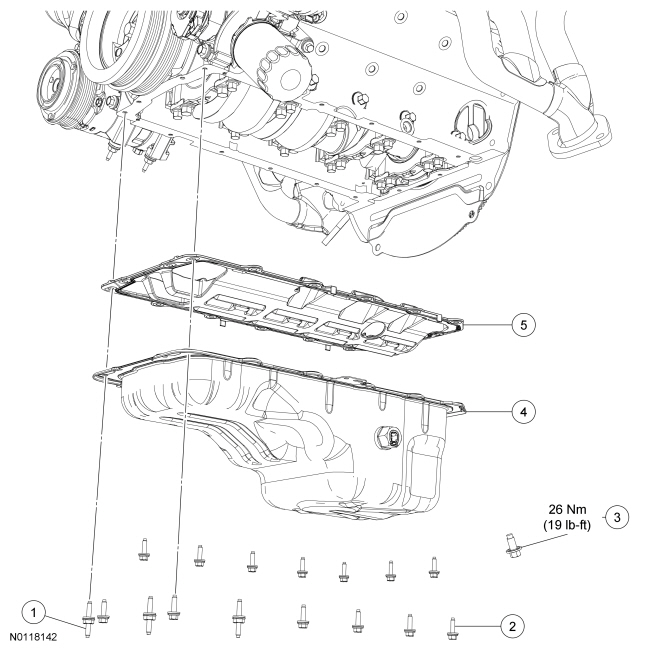

Oil Pan

Item Part Number Description
1 W714963 Oil pan stud bolt (3 required)
2 W714962 Oil pan bolt (13 required)
3 — Oil drain plug (part of 6675)
4 6675 Oil pan
5 6C878 Oil pan baffle and gasket

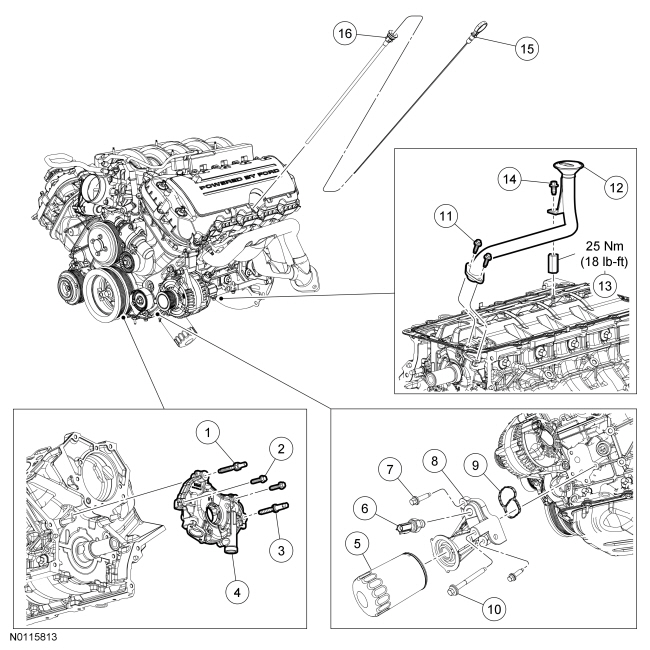

Oil Pump, Oil Filter Adapter, Oil Pump Screen and Pickup Tube and Oil Level Indicator and Tube without Oil Cooler

Item Part Number Description
1 W714251 Oil pump stud bolt
2 N806183 Oil pump bolt (2 required)
3 W714252 Oil pump stud bolt
4 6600 Oil pump
5 6731 Oil filter
6 9278 Engine Oil Pressure (EOP) switch
7 W714974 Oil filter adapter bolt (2 required)
8 6881 Oil filter adapter
9 6A636 Oil filter adapter gasket
10 W503306 Oil filter adapter bolt
11 W714962 Oil pump screen and pickup tube bolt (2 required)
12 6622 Oil pump screen and pickup tube
13 N806180 Oil pump screen and pickup tube spacer
14 N605904 Oil pump screen and pickup tube bolt
15 6750 Oil indicator
16 6754 Oil indicator tube

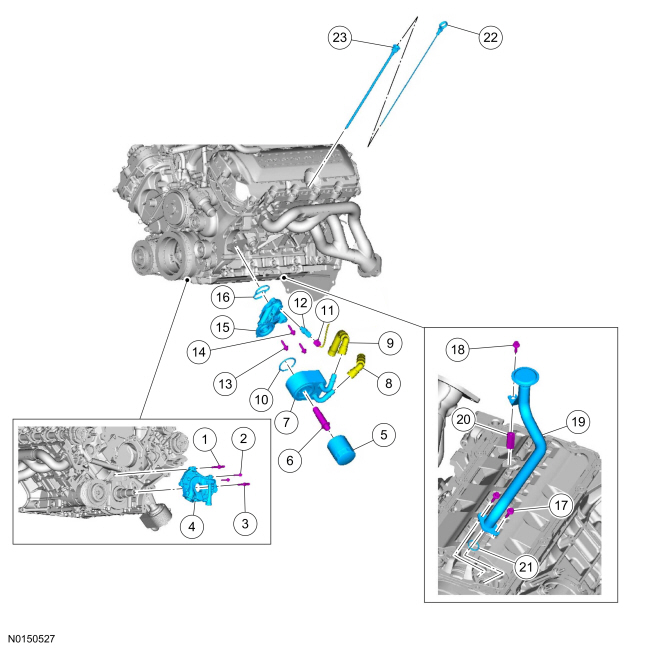

Oil Pump, Oil Filter Adapter, Oil Cooler, Oil Pump Screen and Pickup Tube and Oil Level Indicator and Tube with Oil Cooler

Item Part Number Description
1 W714251 Oil pump stud bolt
2 N806183 Oil pump bolt (2 required)
3 W714252 Oil pump stud bolt
4 6600 Oil pump
5 6731 Oil filter - 16 Nm (142 lb-in)
6 — Oil cooler threaded fitting (part of 6A642) - 58 Nm (43 lb-ft)
7 6A642 Oil cooler
8 6B851 Oil cooler coolant inlet hose
9 6B850 Oil cooler coolant outlet hose
10 — Oil cooler gasket (part of 6A642)
11 9278 Engine Oil Pressure (EOP) switch electrical connector (part of 12A581)
12 9278 EOP switch
13 W714974 Oil filter adapter bolt (2 required) - 20 Nm (177 lb-in) plus an additional 60 degrees
14 W503306 Oil filter adapter bolt - 20 Nm (177 lb-in) plus an additional 60 degrees
15 6881 Oil filter adapter
16 6A636 Oil filter adapter gasket
17 W714962 Oil pump screen and pickup tube bolt (2 required)
18 N605904 Oil pump screen and pickup tube bolt
19 6622 Oil pump screen and pickup tube
20 N806180 Oil pump screen and pickup tube spacer - 25 Nm (18 lb-ft)
21 — Oil pump screen and pickup tube O-ring seal (part of 6622)
22 6750 Oil indicator
23 6754 Oil indicator tube
  1. Refer to the procedures and/or exploded views in this section for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
