SECTION 303-01B: Engine — 5.0L (4V)
2014 Mustang Workshop Manual
IN-VEHICLE REPAIR
Procedure revision date: 01/07/2013

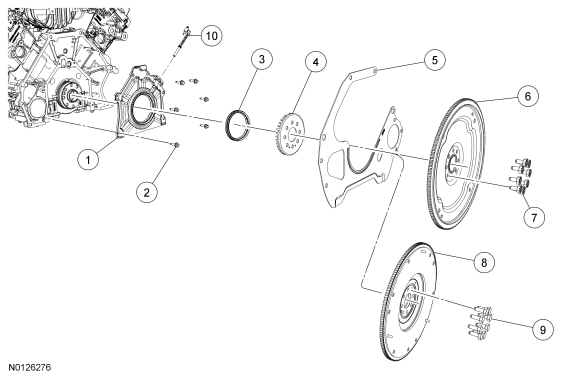

Flexplate or Flywheel and Crankshaft Rear Seal — Exploded View


Item Part Number Description
1 6K318 Crankshaft rear seal retainer plate
2 W714962 Crankshaft rear seal retainer plate bolt (6 required)
3 6701 Crankshaft rear seal
4 12A227 Crankshaft sensor ring
5 6A373 Separator plate
6 6375 Flexplate
7 6379 Flexplate bolt (8 required)
8 6375 Flywheel
9 6379 Flywheel bolt (8 required)
10 6C315 Crankshaft Position (CKP) sensor
  1. Refer to the procedures and/or exploded views in this section for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
