SECTION 303-01B: Engine — 5.0L (4V)
2014 Mustang Workshop Manual
IN-VEHICLE REPAIR
Procedure revision date: 01/07/2013

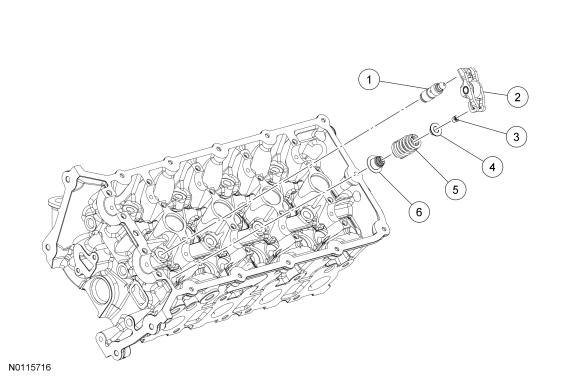

Valve Train Components — Exploded View


Item Part Number Description
1 6500 Hydraulic lash adjuster (32 required)
2 6564 Camshaft roller follower (32 required)
3 6518 Valve spring retainer key (64 required)
4 6514 Valve spring retainer (32 required)
5 6513 Valve spring (32 required)
6 6571 Valve seal (32 required)
  1. Refer to the procedures and/or exploded views in this section for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
