SECTION 303-01C: Engine — 5.8L (4V)	2014 Mustang Workshop Manual
IN-VEHICLE REPAIR	Procedure revision date: 01/07/2013

Exhaust Manifold — LH

Material
Item	Specification
Motorcraft® Metal Surface Prep ZC-31-A	—
Motorcraft® SAE 5W-50 Full Synthetic Motor Oil XO-5W50-QGT	WSS-M2C931-B

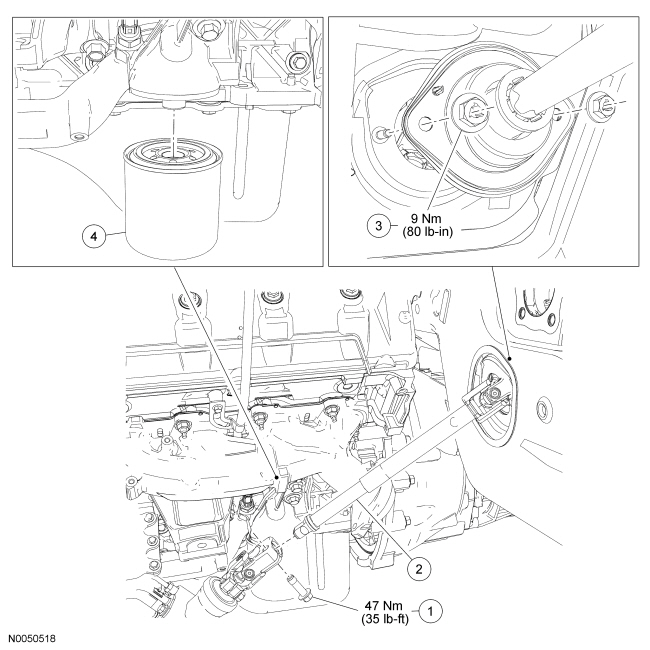

LH Exhaust Manifold (View 1 of 2)

Item	Part Number	Description
1	W702600	Intermediate steering shaft bolt
2	3C662	Intermediate steering shaft
3	W707137	Dash boot nut (2 required)
4	6714	Engine oil filter

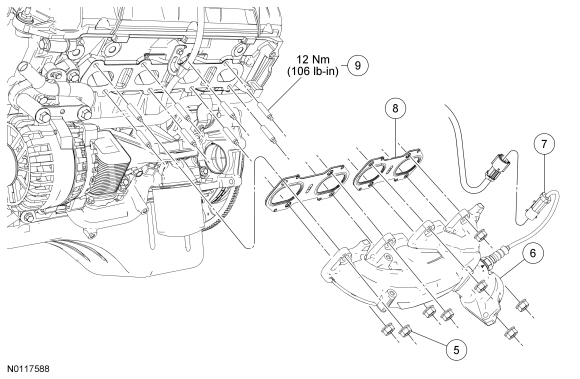

LH Exhaust Manifold (View 2 of 2)

Item	Part Number	Description
5	W701706	LH exhaust manifold nut (8 required)
6	9431	LH exhaust manifold
7	14A464	LH Heated Oxygen Sensor (HO2S) electrical connector (part of 12B637)
8	9Y431	LH exhaust manifold gasket (2 required)
9	W707747	LH exhaust manifold stud (8 required)

Removal

With the vehicle in NEUTRAL, position it on a hoist. Refer to Section 100-02 .

Remove the Air Cleaner (ACL) assembly and the ACL outlet tube. Refer to Section 303-12 .

Remove the 2 dash boot nuts.

NOTE: Use a steering wheel holding device (such as Hunter® 28-75-1 or equivalent).
Using a suitable holding device, hold the steering wheel in the straight-ahead position.

Remove the catalytic converter. Refer to Section 309-00 .

Disconnect the LH Heated Oxygen Sensor (HO2S) electrical connector.

Remove and discard the engine oil filter.

NOTICE: Do not allow the steering wheel to rotate while the steering column intermediate shaft is disconnected or damage to the clockspring can result. If there is evidence that the wheel has rotated, the clockspring must be removed and recentered. For additional information, refer to Section 501-20B .
Remove the upper bolt from the intermediate steering shaft and position the intermediate steering shaft aside.

Remove the 3 bolts and lower the underbody shield.

Remove the 8 nuts and the LH exhaust manifold.
- Discard the nuts and gaskets.

Clean and inspect the LH exhaust manifold. Refer to Section 303-00 .

Remove and discard the 8 LH exhaust manifold studs.

Installation

NOTICE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
Clean the exhaust manifold mating surface of the cylinder head with metal surface prep. Follow the directions on the packaging.

NOTE: Hand start the studs first.
Install 8 new LH exhaust manifold studs.
- Tighten to 12 Nm (106 lb-in).

Install new gaskets, the LH exhaust manifold and 8 new nuts. Tighten in the sequence shown.
- Tighten to 20 Nm (177 lb-in).

Position the underbody shield and install the 3 bolts.
- Tighten to 9 Nm (80 lb-in).

NOTICE: Do not allow the steering wheel to rotate while the steering column intermediate shaft is disconnected or damage to the clockspring can result. If there is evidence that the wheel has rotated, the clockspring must be removed and recentered. For additional information, refer to Section 501-20B .
Install the intermediate steering shaft and the upper bolt.
- Tighten to 47 Nm (35 lb-ft).

Install a new engine oil filter.
- Lubricate the oil filter gasket with clean engine oil and tighten until the seal makes contact.
- Using an oil filter strap wrench, tighten the filter an additional 270 degrees.

Connect the LH HO2S electrical connector.

Install the catalytic converter. Refer to Section 309-00 .

Install the 2 dash boot nuts.
- Tighten to 9 Nm (80 lb-in).

Install the ACL assembly and the ACL outlet tube. Refer to Section 303-12 .
