SECTION 303-01C: Engine — 5.8L (4V)
2014 Mustang Workshop Manual
IN-VEHICLE REPAIR
Procedure revision date: 01/07/2013

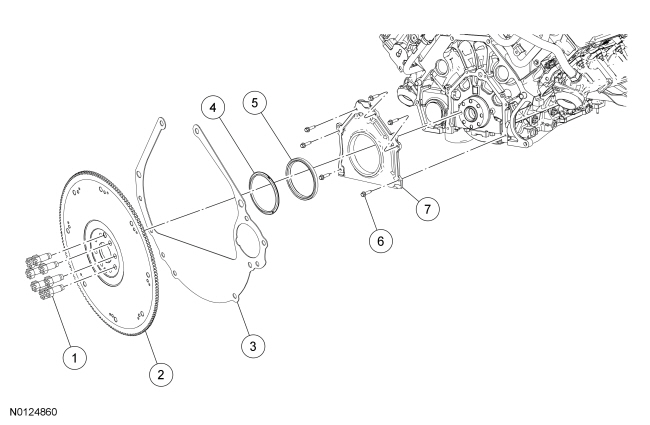

Lower End Components — Exploded View, Flywheel and Crankshaft Rear Seal with Retainer Plate


Item Part Number Description
1 6379 Flywheel bolt (8 required)
2 6375 Flywheel
3 6A373 Engine-to-transmission spacer plate
4 6310 Crankshaft oil slinger
5 6701 Crankshaft rear seal
6 N806155 Crankshaft rear seal retainer plate bolt (6 required)
7 6K318 Crankshaft rear seal retainer plate
  1. Refer to the procedures and/or exploded views in this section for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
