SECTION 303-03A: Engine Cooling
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Block Heater

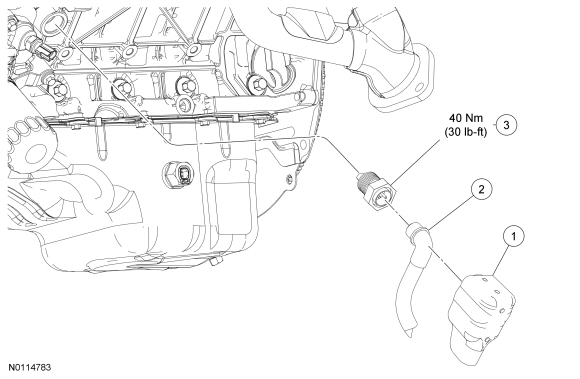

Block Heater - 3.7L

Item Part Number Description
1 030104 Block heater cover
2 6B018 Block heater electrical connector
3 6A051 Block heater

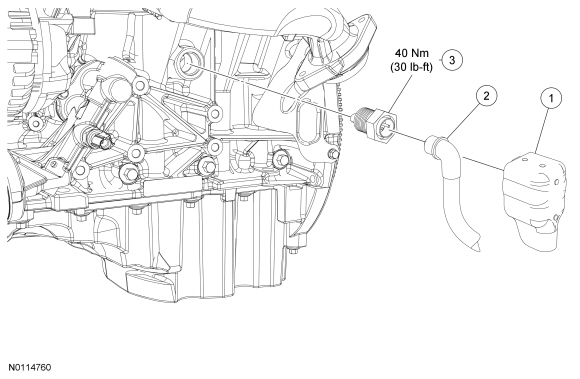

Block Heater - 5.0L

Item Part Number Description
1 030104 Block heater cover
2 6B018 Block heater electrical connector
3 6A051 Block heater

Removal and Installation

  1. Drain the cooling system. For additional information, refer to Cooling System Draining, Filling and Bleeding in this section.
  1. Remove the block heater cover.

  1. NOTICE: Make sure that the block heater wiring is routed and secured away from rotating or hot components, or the wiring may be damaged.

    Disconnect the block heater electrical connector.
  1. Remove the block heater.
  1. To install, reverse the removal procedure.
  1. Fill and bleed the cooling system. For additional information, refer to Cooling System Draining, Filling and Bleeding in this section.
