SECTION 303-03A: Engine Cooling
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Coolant Pump — 5.8L (4V)


Material
Item Specification
Motorcraft® Orange Antifreeze/Coolant Concentrated
VC-3-B (US); CVC-3-B2 (Canada) 		WSS-M97B44-D
Motorcraft® Orange Antifreeze/Coolant Prediluted
VC-3DIL-B (US); CVC-3DIL-B (Canada) 		WSS-M97B44-D2

Coolant Pump and Pulley

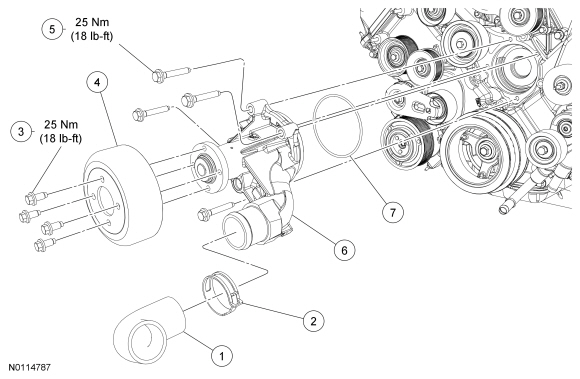

Item Part Number Description
1 8286 Lower radiator hose assembly
2 — Lower radiator hose assembly clamp (part of 8286)
3 N806282 Coolant pump pulley bolt (4 required)
4 8509 Coolant pump pulley
5 N806177 Coolant pump bolt (4 required)
6 8501 Coolant pump
7 391108 Coolant pump O-ring seal

Removal

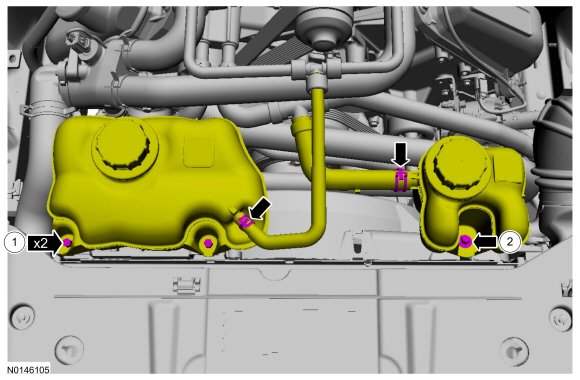

  1. Drain the cooling system. Refer to Cooling System Draining, Filling and Bleeding .
  1. Drain the SC cooling system. Refer to Section 303-03B .
    1. To install, tighten to 8 Nm (71 lb-in).
    1. To install, tighten to 8 Nm (71 lb-in).
  1. Loosen the 4 coolant pump pulley bolts.
  1. Remove the accessory drive belt. Refer to Section 303-05 .

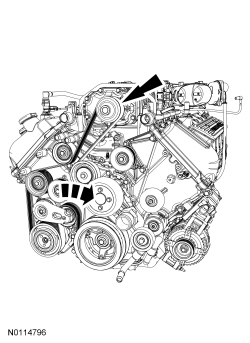

  1. Rotate the SC belt tensioner clockwise and remove the SC belt off the SC .
  1. Remove the 4 coolant pump pulley bolts and the coolant pump pulley.
  1. Release the clamp and disconnect the lower radiator hose from the coolant pump.
  1. Remove the 4 bolts and the coolant pump.

Installation

  1. To install, reverse the removal procedure.
  1. Fill and bleed the cooling system. Refer to Cooling System Draining, Filling and Bleeding .
  1. Fill and bleed the SC cooling system. Refer to Section 303-03B .
