SECTION 303-03A: Engine Cooling
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Cooling Fan Motor and Shroud — 3.7L and 5.0L

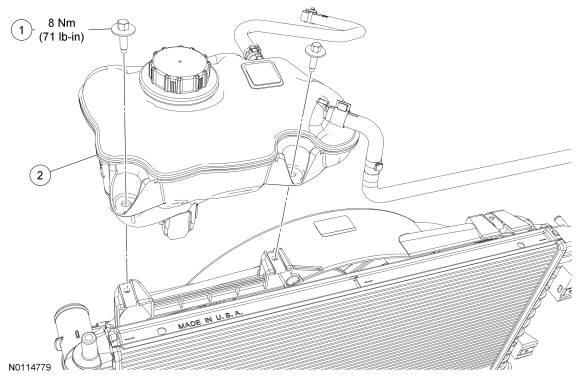

Item Part Number Description
1 W704652 Degas bottle bolt (2 required)
2 8A080 Degas bottle

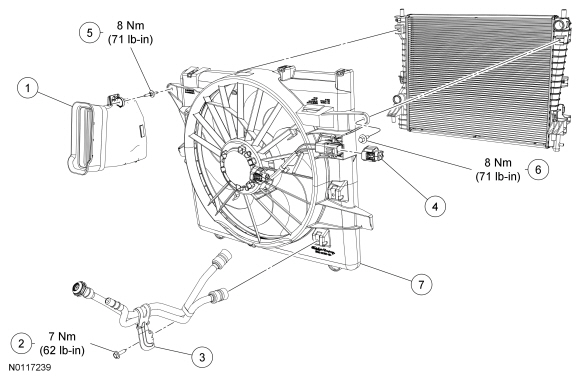

Item Part Number Description
1 9A624 Air Cleaner (ACL) inlet pipe
2 W707491 Transmission cooler tubes bracket bolt
3 — Transmission cooler tubes bracket (part of 7A095)
4 — Cooling fan motor electrical connector (part of 14290)
5 W715011 Cooling fan motor and shroud stud bolt
6 W704652 Cooling fan motor and shroud bolt
7 8C607 Cooling fan motor and shroud

Removal and Installation

  1. Remove the air cleaner and the air cleaner outlet tube. For additional information, refer to Section 303-12 .
  1. Release the tabs and remove the air cleaner inlet pipe.
  1. Remove the 2 bolts and position the degas bottle aside.
  1. Disconnect the cooling fan motor and shroud electrical connector.
  1. If equipped, remove the transmission cooler tubes bracket bolt.
  1. Remove the bolt, the stud bolt and the cooling fan motor and shroud.
  1. To install, reverse the removal procedure.
