SECTION 303-03A: Engine Cooling
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

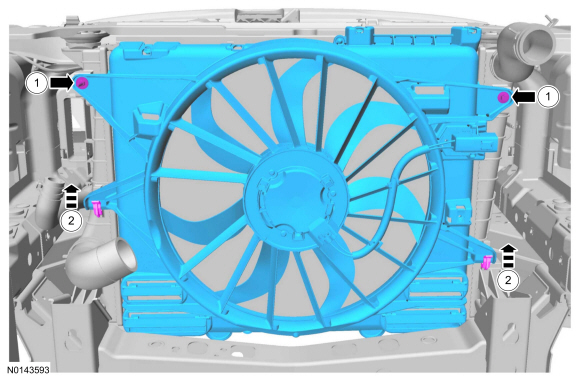

Cooling Fan Motor and Shroud — 5.8L (4V)
Remove the Air Cleaner (ACL) assembly. Refer to
Section 303-12
.
To install, tighten to 8 Nm (71 lb-in).
To install, tighten to 8 Nm (71 lb-in).
To install, tighten to 8 Nm (71 lb-in).
To install, reverse the removal procedure.
