SECTION 303-03A: Engine Cooling
| 2014 Mustang Workshop Manual
|
REMOVAL AND INSTALLATION
| Procedure revision date: 01/07/2013
|

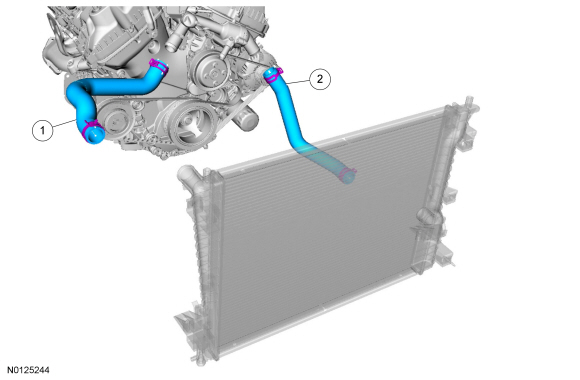

| Item | Part Number | Description |
|---|---|---|
| 1 | 8260 | Upper radiator hose |
| 2 | 8286 | Lower radiator hose |

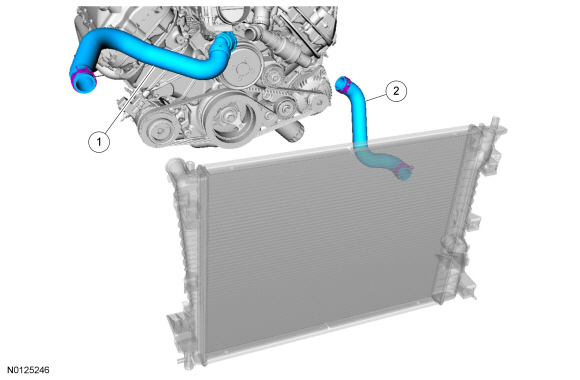

| Item | Part Number | Description |
|---|---|---|
| 1 | 8260 | Upper radiator hose |
| 2 | 8286 | Lower radiator hose |

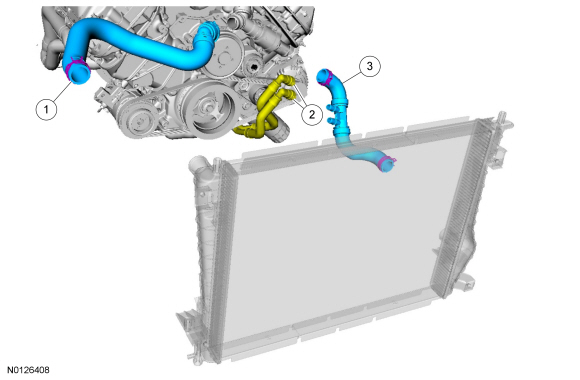

| Item | Part Number | Description |
|---|---|---|
| 1 | 8260 | Upper radiator hose |
| 2 | — | Oil cooler-to-lower radiator hose assembly quick connect couplings (part of 6N866) |
| 3 | 8286 | Lower radiator hose |
NOTE: Without cooling package shown, with cooling package similar.

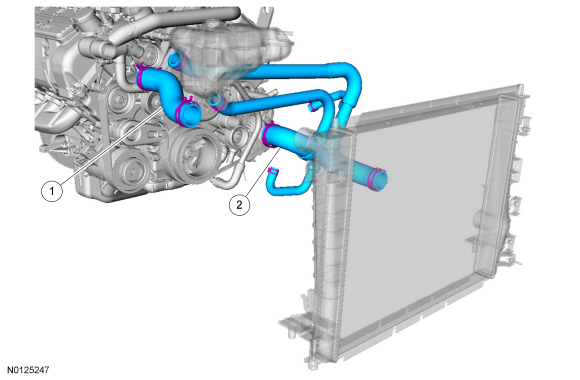

| Item | Part Number | Description |
|---|---|---|
| 1 | 8260 | Upper radiator hose |
| 2 | 8286 | Lower radiator hose |
NOTICE: Cover the accessory drive belts to prevent coolant contamination of the belts.
For 3.7L and 5.0L engines, completely cover the accessory drive belts with waterproof plastic.
