SECTION 303-03A: Engine Cooling
| 2014 Mustang Workshop Manual
|
REMOVAL AND INSTALLATION
| Procedure revision date: 01/07/2013
|

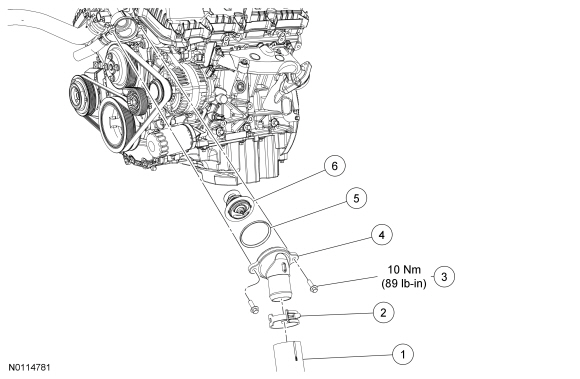

| Item | Part Number | Description |
|---|---|---|
| 1 | 8B273 | Lower radiator hose |
| 2 | 15161 | Lower radiator hose clamp |
| 3 | W500014 | Coolant inlet connector bolt (2 required) (part of 8592) |
| 4 | 8594 | Coolant inlet connector (part of 8592) |
| 5 | 8255 | Thermostat O-ring seal (part of 8592) |
| 6 | 8575 | Thermostat (part of 8592) |

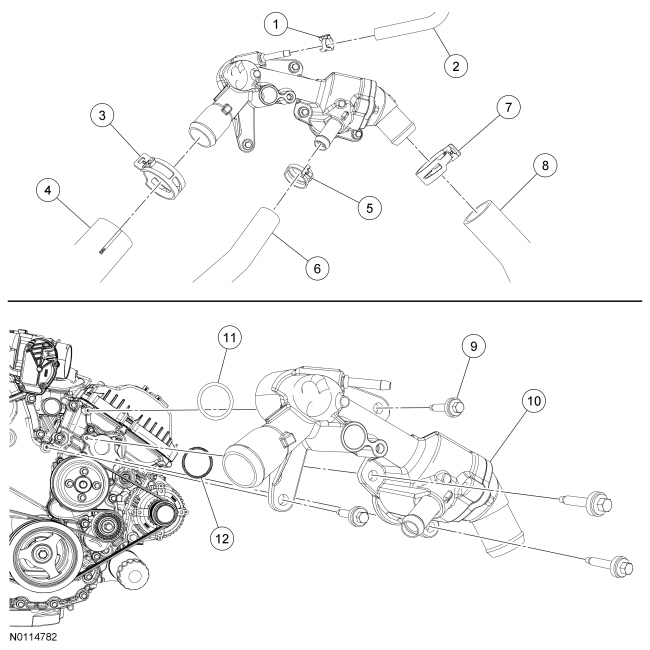

| Item | Part Number | Description |
|---|---|---|
| 1 | 15161 | Thermostat housing-to-degas bottle hose clamp |
| 2 | 8276 | Thermostat housing-to-degas bottle hose |
| 3 | 15161 | Upper radiator hose clamp |
| 4 | 8B274 | Upper radiator hose |
| 5 | 15161 | Coolant return hose clamp |
| 6 | 8K289 | Coolant return hose |
| 7 | 15161 | Lower radiator hose clamp |
| 8 | 8B273 | Lower radiator hose |
| 9 | W714841 | Thermostat housing bolts |
| 10 | 8592 | Thermostat housing |
| 11 | 8565 | Coolant inlet tube O-ring seal |
| 12 | 8A571 | Thermostat housing inlet O-ring seal (part of 8592) |

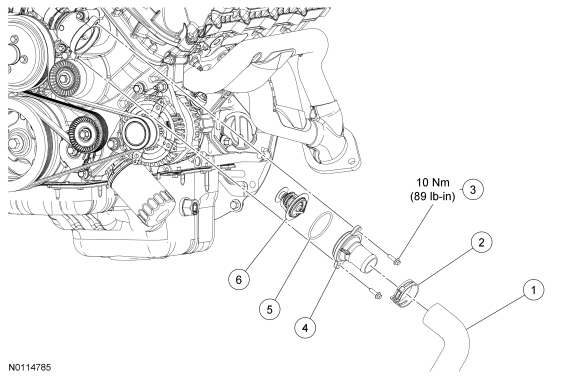

| Item | Part Number | Description |
|---|---|---|
| 1 | 8B273 | Lower radiator hose |
| 2 | 15161 | Lower radiator hose clamp |
| 3 | W500014 | Coolant inlet connection bolt (2 required) (part of 8A586) |
| 4 | 8K528 | Coolant inlet connection (part of 8A586) |
| 5 | 8255 | Thermostat O-ring seal (part of 8A586) |
| 6 | 8575 | Thermostat (part of 8A586) |

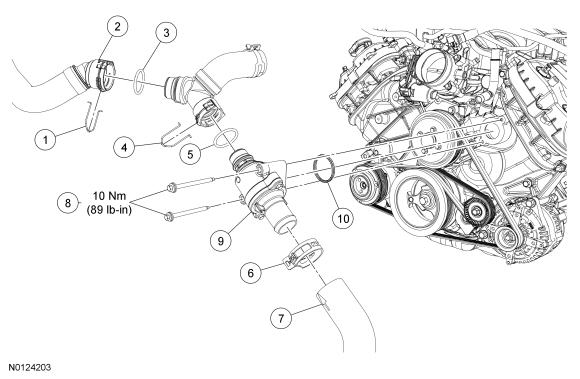

| Item | Part Number | Description |
|---|---|---|
| 1 | 8D037 | Upper radiator hose spring clip (part of 8260) |
| 2 | 8260 | Upper radiator hose |
| 3 | 8D058 | Upper radiator hose O-ring seal (part of 8260) |
| 4 | 8D037 | Upper radiator hose T-connector spring clip (part of 8566) |
| 5 | 8D058 | Upper radiator hose T-connector O-ring seal (part of 8566) |
| 6 | 15161 | Lower radiator hose clamp |
| 7 | 8286 | Lower radiator hose |
| 8 | W713197 | Thermostat housing bolts (2 required) |
| 9 | 8A586 | Thermostat housing |
| 10 | 8A571 | Thermostat housing gasket (part of 8A586) |

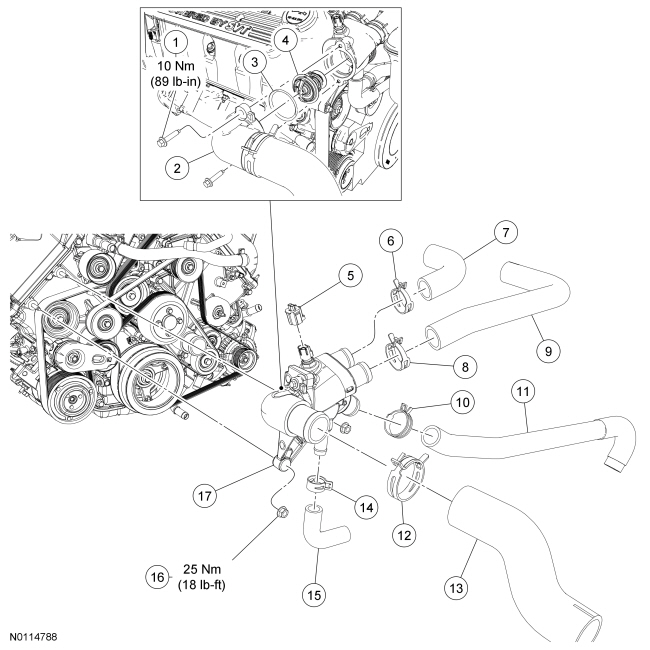

| Item | Part Number | Description |
|---|---|---|
| 1 | N605893 | Coolant outlet connector bolt (2 required) |
| 2 | 8594 | Coolant outlet connector |
| 3 | 8255 | Thermostat O-ring seal |
| 4 | 8575 | Thermostat |
| 5 | — | ECT sensor electrical connector (part of 12C508) |
| 6 | 8A586 | RH thermostat housing-to-intake manifold hose clamp |
| 7 | 8A595 | RH thermostat housing-to-intake manifold hose |
| 8 | 8A586 | LH thermostat housing-to-intake manifold hose clamp |
| 9 | 8A595 | LH thermostat housing-to-intake manifold hose |
| 10 | 15161 | Lower radiator hose clamp |
| 11 | 8B273 | Lower radiator hose |
| 12 | 8287 | Upper radiator hose clamp |
| 13 | 8B274 | Upper radiator hose |
| 14 | 8287 | Thermostat housing-to-oil filter adapter hose clamp |
| 15 | 6B851 | Thermostat housing-to-oil filter adapter hose |
| 16 | W520413 | Thermostat housing nut (2 required) |
| 17 | 9K478 | Thermostat housing |
