SECTION 303-03B: Supercharger Cooling
2014 Mustang Workshop Manual
REMOVAL AND INSTALLATION
Procedure revision date: 01/07/2013

Coolant Pump

Removal

  1. Remove the ACL housing and the ACL inlet pipe. Refer to Section 303-12 .
  1. Drain the SC cooling system. Refer to Supercharger Cooling System Draining, Filling and Bleeding .

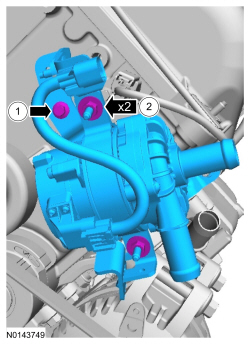

    1. To install, tighten to 10 Nm (89 lb-in).

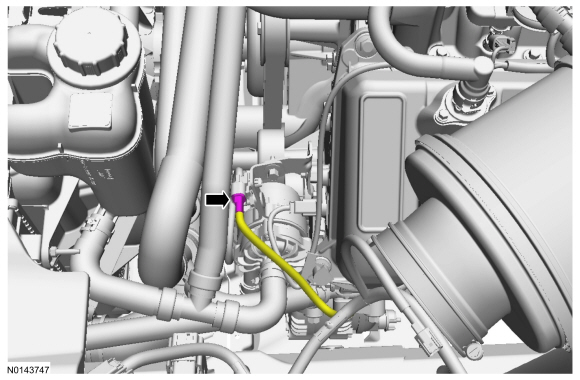

    1. To install, tighten to 11 Nm (97 lb-in).

Installation

  1. To install, reverse the removal procedure.
  1. Fill and bleed the SC cooling system. Refer to Supercharger Cooling System Draining, Filling and Bleeding .
